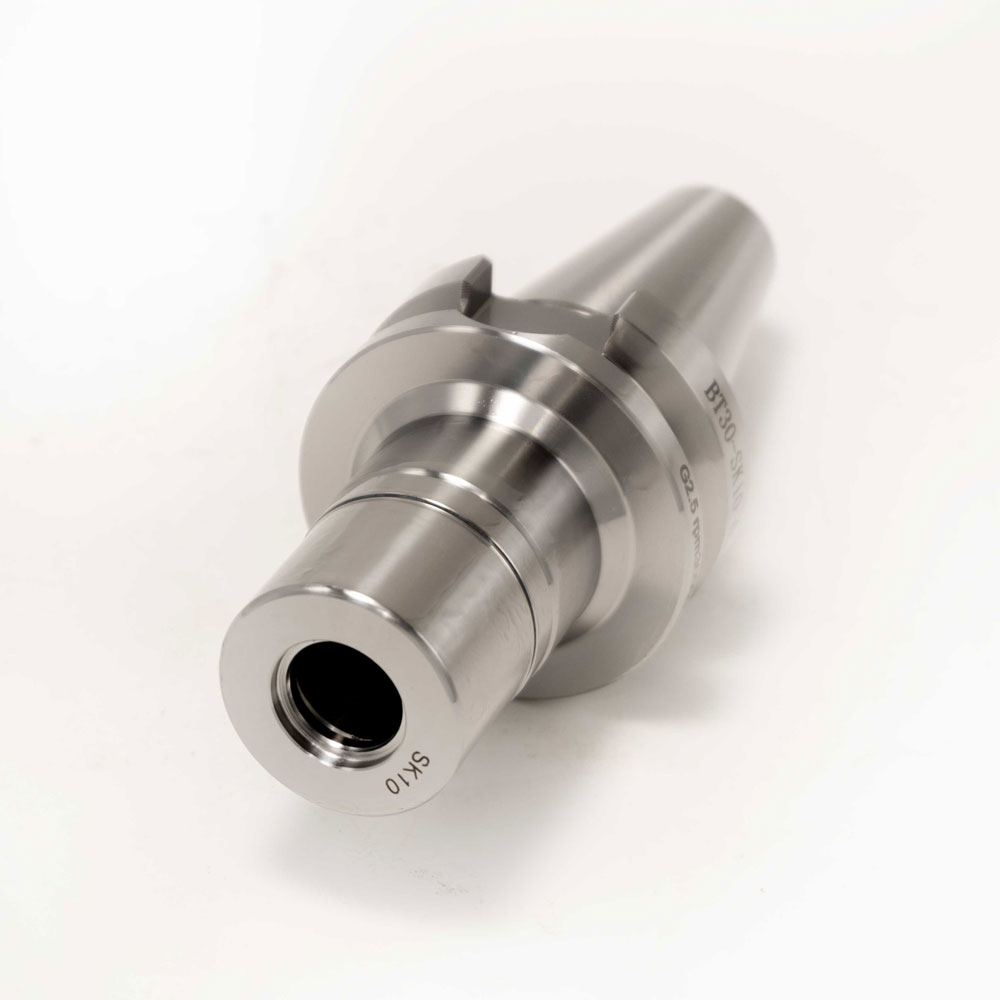

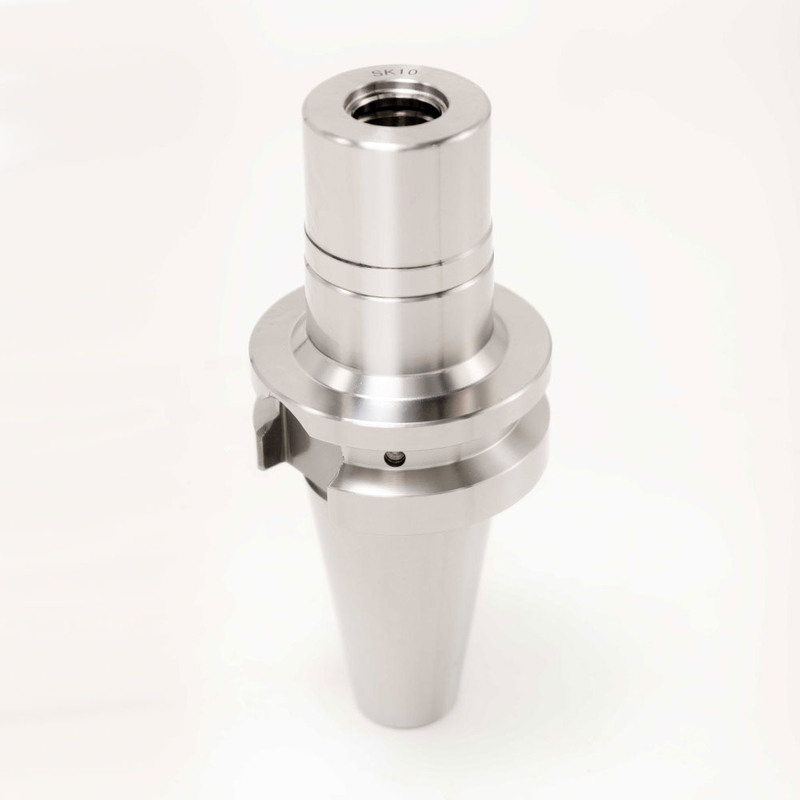

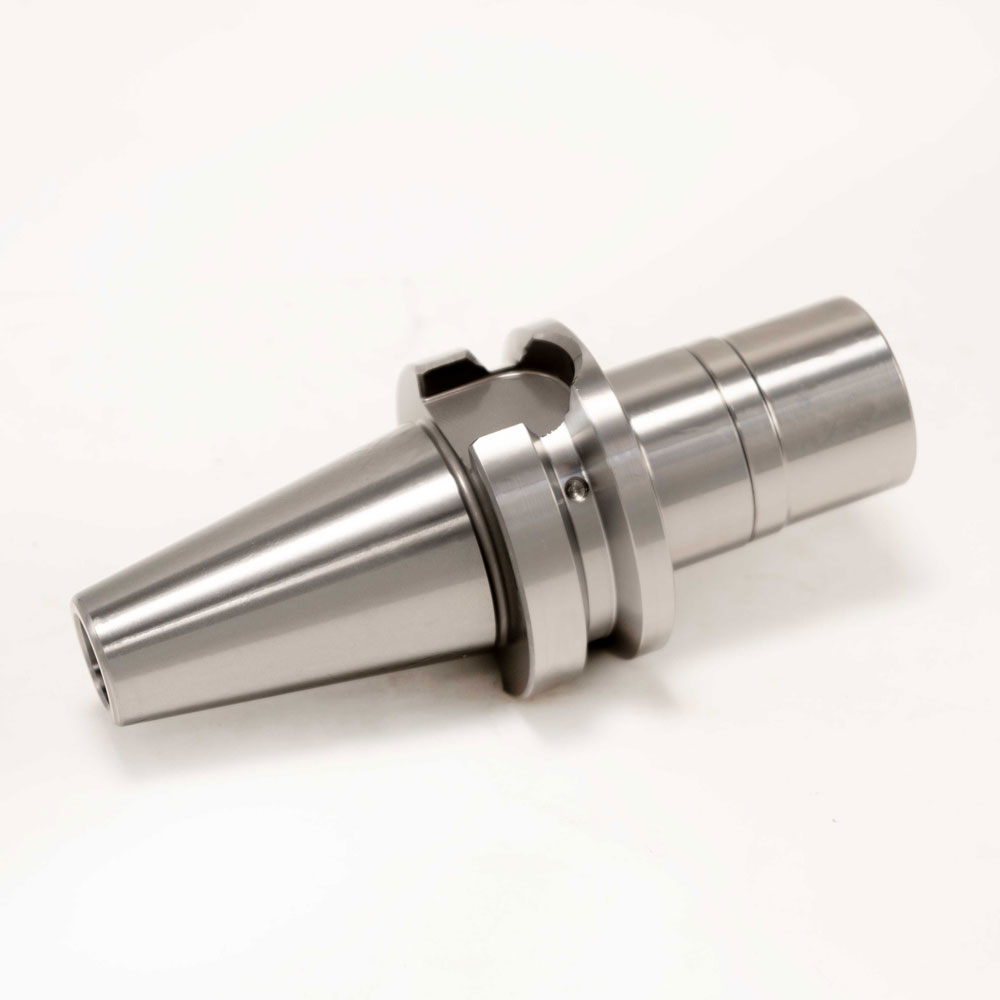

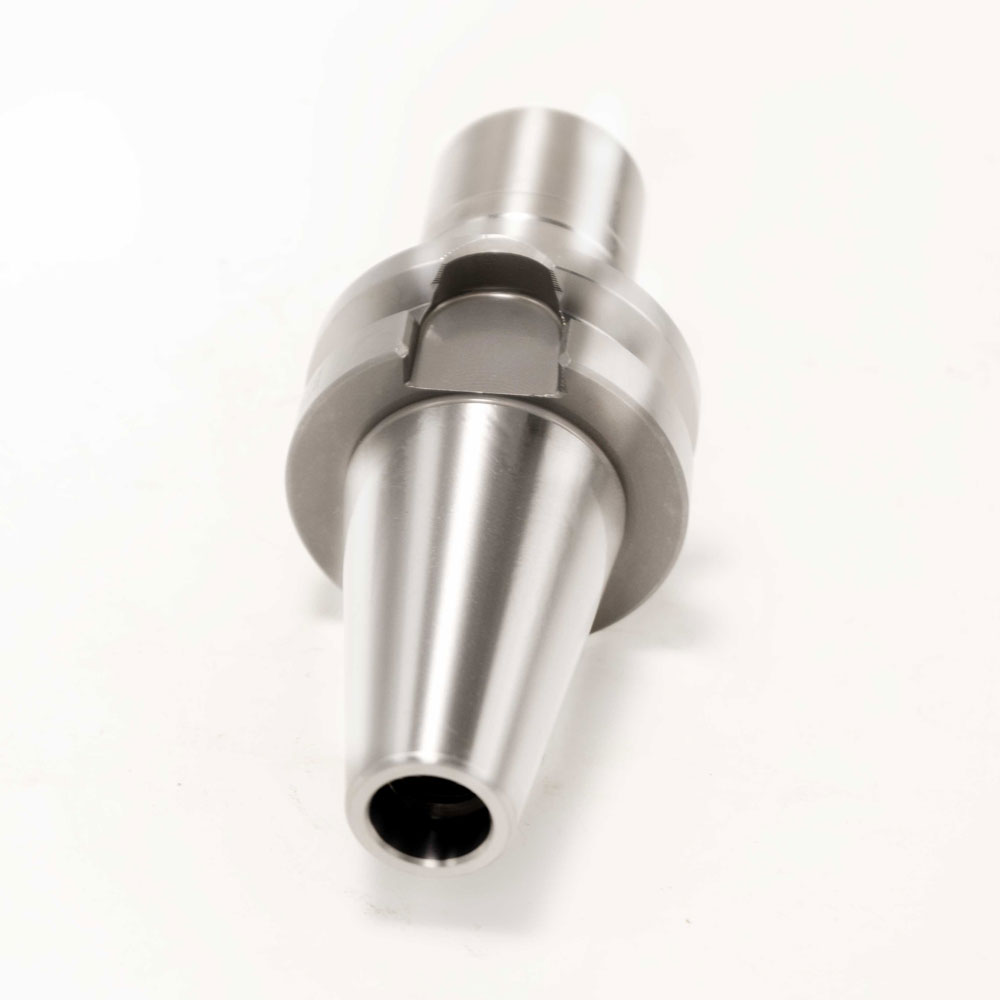

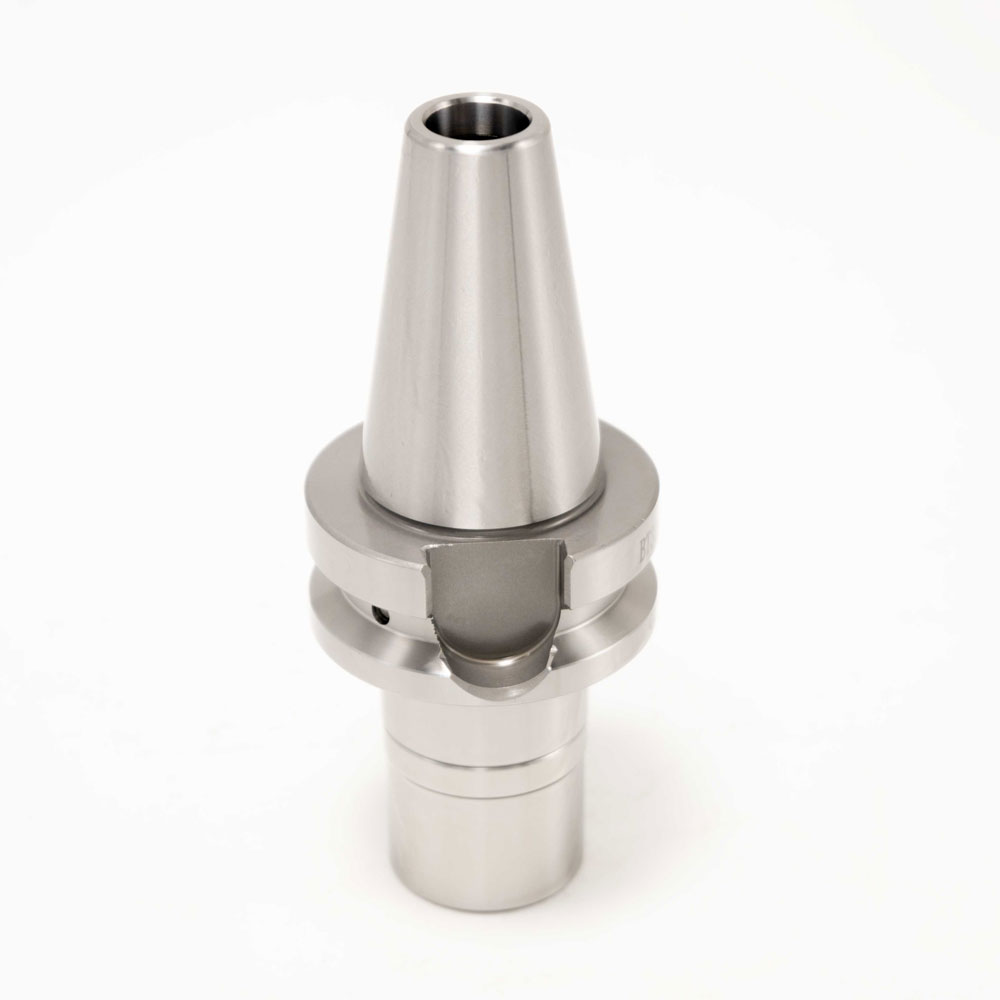

BT SK GSK High Speed SK Collet Chuck Holder

1. Made from carburized alloy steel, work surface hardness to HRC58～62.

2. Taper accuracy≤AT3, ensure well contact with spindle cone for high speed running to protect the spindle.

3. Concentricity and runout ≤0.005mm in high rpm.

4. Including collet chuck, shell end mill holder, weldon mill holder, sleeve, drill chuck arbor, combi shell end mill holder, with BT, CAT, DIN, HSK standard shank.

5. Holders can be balanced to G6.3/12000RPM or G2.5/20000RPM.

Availability:

Quantity:



Inquire Add to Basket

Model:
BT-SK

Product Description

BT SK GSK High Speed SK Collet Chuck Holder

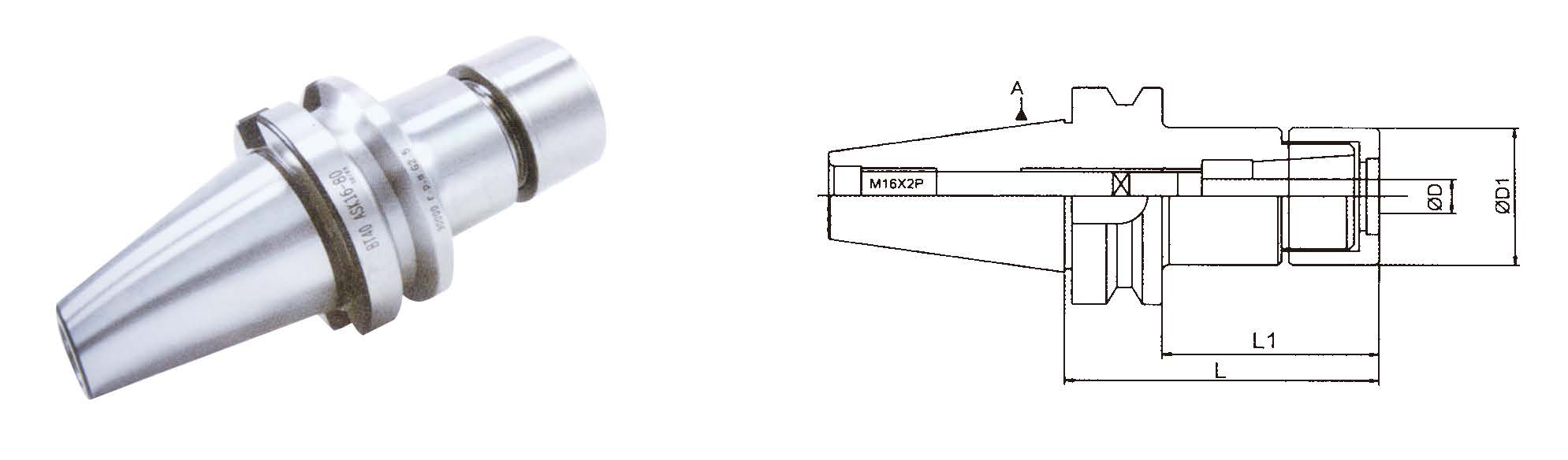

BT-SK-Collet-Chuck

Model	D1	L	Clamping Range(d)
BT30-SK06-60	20	60	2-6
BT30-SK06-80	20	80	2-6
BT30-SK10-70	27	70	2-10
BT30-SK10-95	27	95	2-10
BT30-SK16-60	40	60	3-16
BT30-SK16-80	40	80
BT30-SK16-100	40	100
BT30-SK20-60	48	60	4-20
BT30-SK25-85	54	85	6-25
BT40-SK06-60	20	65	2-6
BT40-SK06-85	20	85	2-6
BT40-SK10-55	27	55	2-10
BT40-SK10-80	27	80
BT40-SK10-100	27	100
BT40-SK10-150	27	150
BT40-SK16-80	40	80	3-16
BT40-SK16-100	40	100
BT40-SK16-150	40	150
BT40-SK20-60	48	60	4-20
BT40-SK20-90	48	90
BT40-SK20-120	48	120
BT40-SK25-70	54	70	6-25
BT40-SK25-95	54	95
BT40-SK25-110	54	110
