QKG
JC

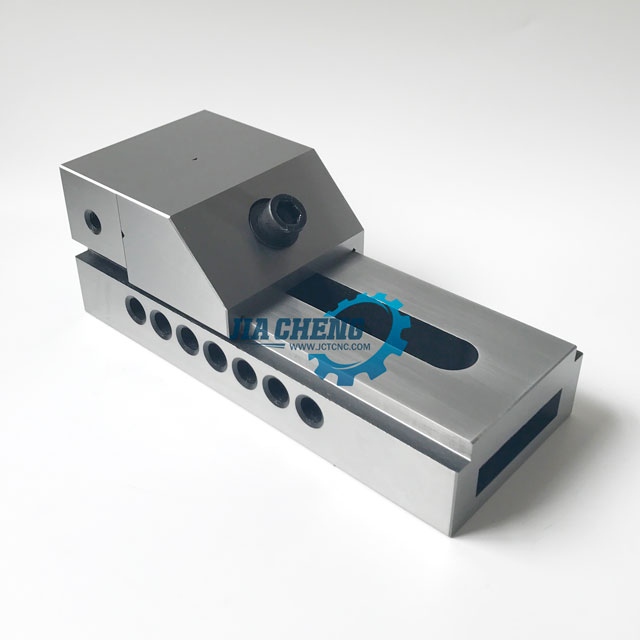

CNC Grinding QKG Precision Tool Milling Vise
Order No. | B(mm) | H(mm) | Smax（mm） | L（mm） | Wt.（kg） |
QKG25 | 26 | 9.15 | 22 | 65.4 | 0.5 |
QKG36 | 36 | 20 | 40 | 100 | 1.2 |
QKG38 | 38 | 20 | 44 | 105 | 1.3 |
QKG50 | 50 | 25 | 65 | 140 | 2.0 |
QKG63 | 60 | 32 | 85 | 175 | 3.0 |
QKG73 | 73 | 35 | 100 | 190 | 4.1 |
QKG80 | 80 | 40 | 100 | 200 | 5.5 |
QKG88 | 88 | 40 | 125 | 235 | 7.3 |
QKG100 | 100 | 45 | 125 | 245 | 10.0 |
QKG125 | 125 | 50 | 160 | 285 | 18.0 |
QKG150 | 150 | 50 | 200 | 330 | 21.5 |
QKG150A | 150 | 50 | 250 | 380 | 23.0 |
QKG150B | 150 | 50 | 300 | 430 | 24.0 |
1.Quickly to clamp and easy to operate
2.Used for precision measurement and in spection precision grinding. EDM and wire-cutting machine
3.Guarantee high accuracy in any position.
4.Ajustable angle range:0-45
5.The precision sine vise is developed for processing at various angles.It is used for grinding ,cutting,making hole marking and measuring.
6.Availble inspecting angles and processing workpices with angle.
