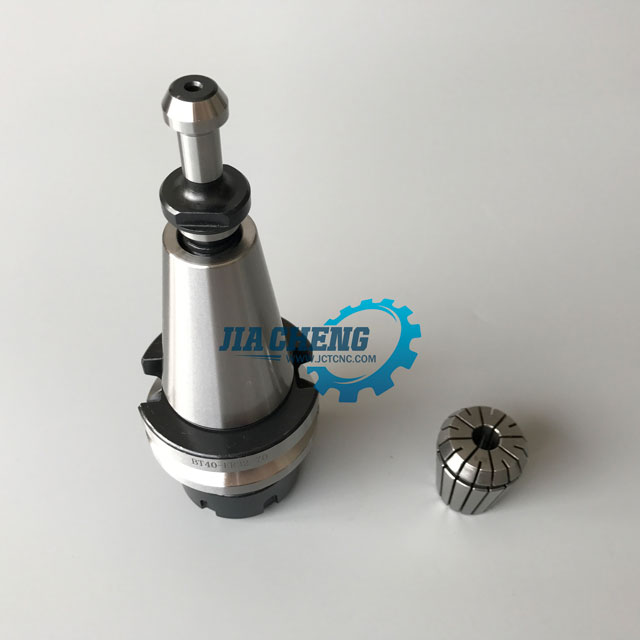

CNC Milling Machine MAS403 BT ER Collet Chuck

1. Made from carburized alloy steel, work surface hardness to HRC58～62.
2. Taper accuracy≤AT3, ensure well contact with spindle cone for high speed running to protect the spindle.
3. Concentricity and runout ≤0.005mm in high rpm.
4. Including collet chuck, shell end mill holder, weldon mill holder, sleeve, drill chuck arbor, combi shell end mill holder, with BT, CAT, DIN, HSK standard shank.
5. Holders can be balanced to G6.3/12000RPM or G2.5/20000RPM.
Availability:
Quantity:
Inquire Add to Basket

  • BT-ER

CNC Milling Machine MAS403 BT ER Collet Chuck

尺寸

BT X ER-L1

 D D1

BT X ER-L1

 D D1
BT30XER16-70
 28 31.75 BT45XER32-70 50 57.15
BT30XER20-70 34 31.75 BT45XER32-100 50 57.15
BT30XER25-70 42 31.75 BT45XER32-120 50 57.15
BT30XER32-70 50 31.75 BT45XER40-80 63 57.15
BT30XER40-80 63 31.75 BT45XER40-100 63 57.15
BT40XER16-70 28 44.45 BT45XER40-120 63 57.15
BT40XER20-70 34 44.45 BT50XER16-70 28 69.85
BT40XER20-100 34 44.45 BT50XER16-90 28 69.85
BT40XER20-150 34 44.45 BT50XER16-135 28 69.85
BT40XER25-60 42 44.45 BT50XER20-70 34 69.85
BT40XER25-70 42 44.45 BT50XER20-90 34 69.85
BT40XER25-90 42 44.45 BT50XER20-135 34 69.85
BT40XER25-100 42 44.45 BT50XER20-150 34 69.85
BT40XER25-150 42 44.45 BT50XER20-165 34 69.85
BT40XER32-70 50 44.45 BT50XER25-70 42 69.85
BT40XER32-100 50 44.45 BT50XER25-135 42 69.85
BT40XER32-150 50 44.45 BT50XER25-165 42 69.85
BT40XER40-70 63 44.45 BT50XER32-70 50 69.85
BT40XER40-80 63 44.45 BT50XER32-80 50 69.85
BT40XER40-120 63 44.45 BT50XER32-100 50 69.85
BT40XER40-150 63 44.45 BT50XER32-120 50 69.85
BT45XER16-70 28 57.15 BT50XER40-80 63 69.85
BT45XER20-70 34 57.15 BT50XER40-100 63 69.85
BT45XER20-100 34 57.15 BT50XER40-120 63 69.85
BT45XER25-70 42 57.15 BT50XER40-135 63 69.85
BT45XER25-90 42 57.15 BT50XER50-90 78 69.85
BT45XER25-100 42 57.15 BT50XER50-120 78 69.85
