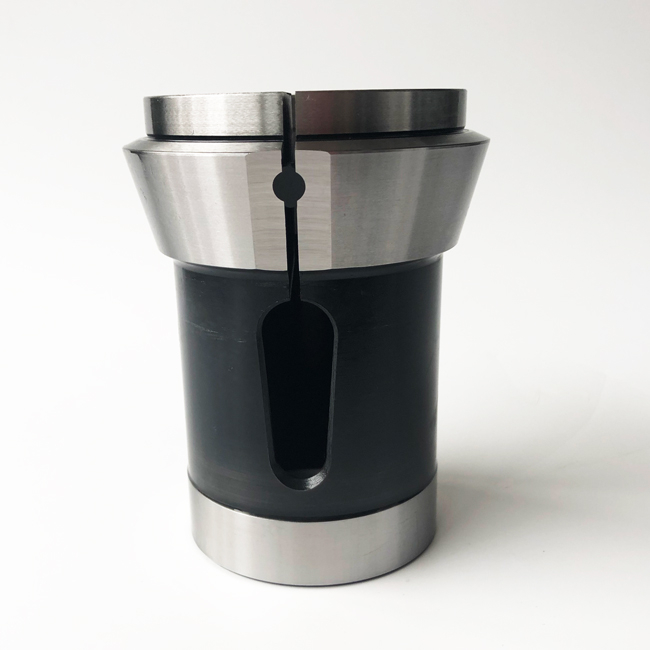

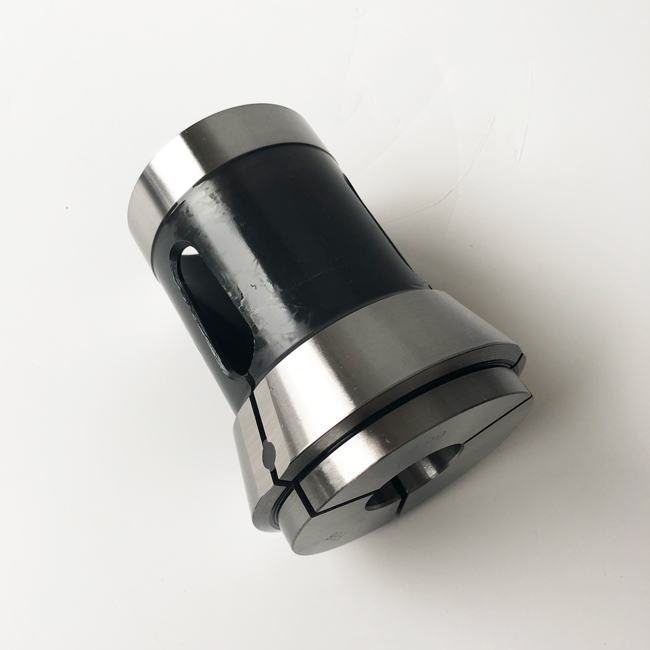

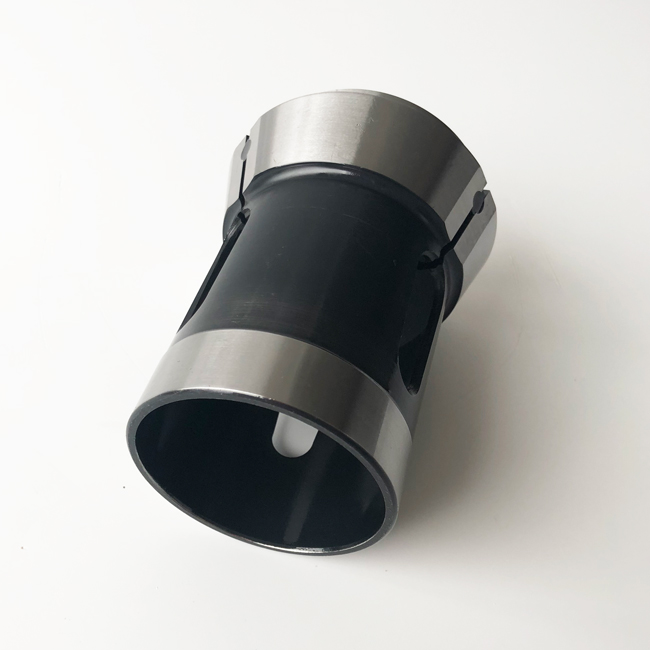

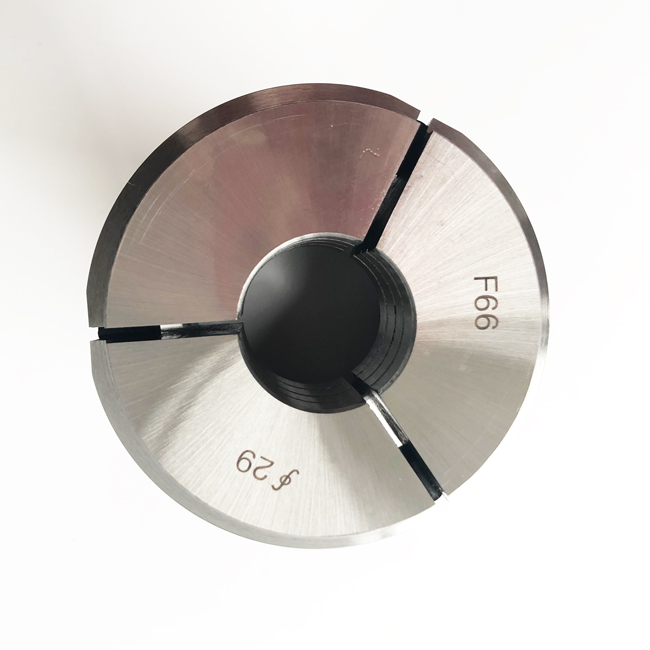

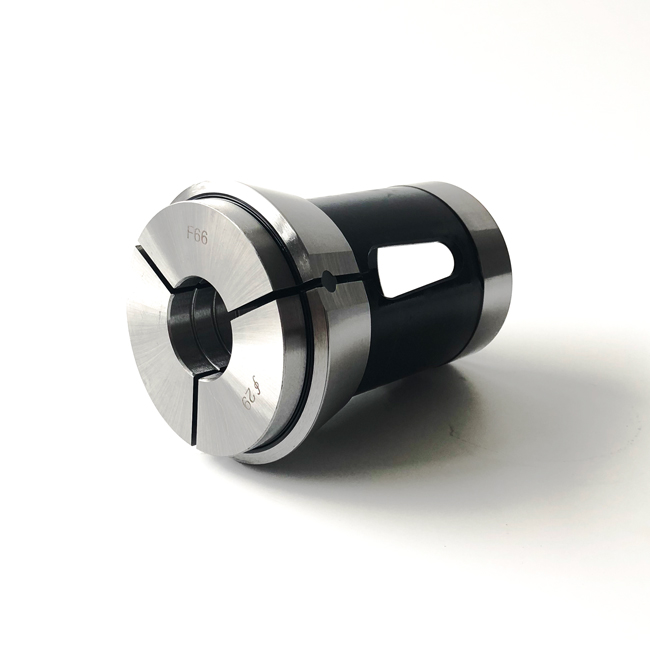

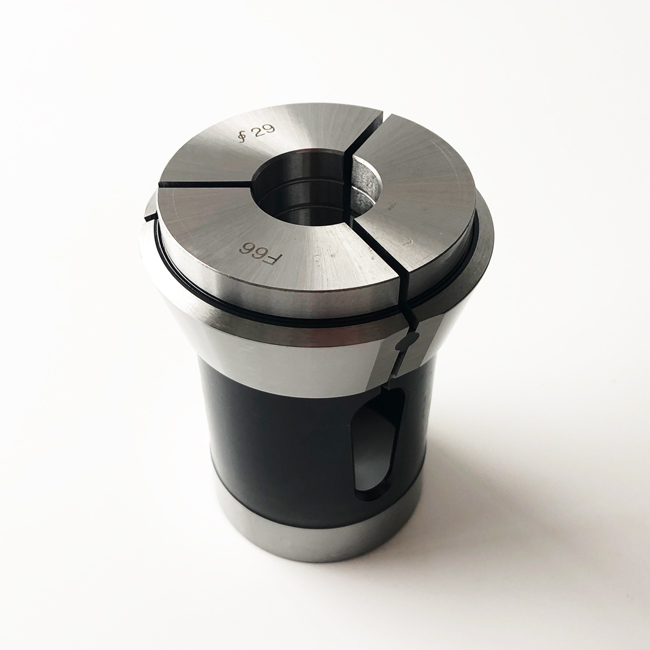

DIN6343 Clamping Collet

1. Made of special elastic steel material

2. Power clamping ability,precise accuracy

3. Used for boring,milling,drilling,tappping,grinding and engraving operation etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
DIN6343
Brand:
JC

Product Description

DIN6343 Collet (1)

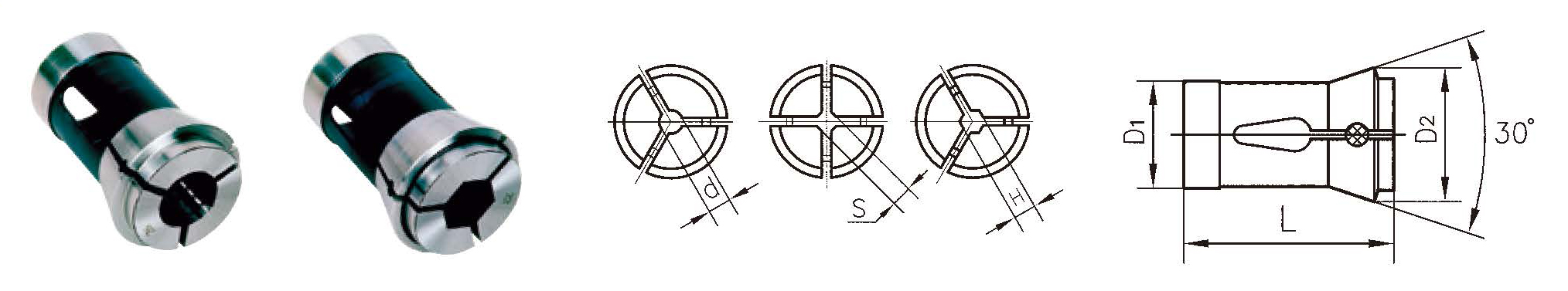

Model	D1(mm)	D2(mm)	L（mm）	Hole Size(mm)			Wt（kg）
Model	D1(mm)	D2(mm)	L（mm）	ROUND	SQUARE	HEX	Wt（kg）
DIN6343-F17.5	17.5	22	51	13	8	10	0.05
DIN6343-F22	22	30	55	16	11	13	0.09
DIN6343-F27	27	38	72.7	22	15	19	0.10
DIN6343-F28	28	38	70	22	15	19	0.12
DIN6343-F32	32	45	75	26	18	22	0.27
DIN6343-F35	35	48	80	30	21	26	0.35
DIN6343-F42	42	55	94	36	25	30	0.49
DIN6343-F48	48	60	94	42	29	36	0.57
DIN6343-F56	56	68	94	50	35	42	0.65
DIN6343-F66	66	84	110	60	42	52	1.16
