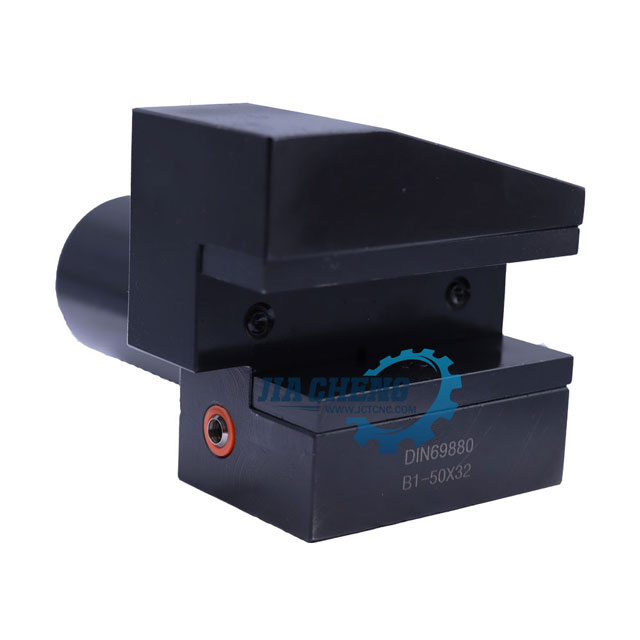

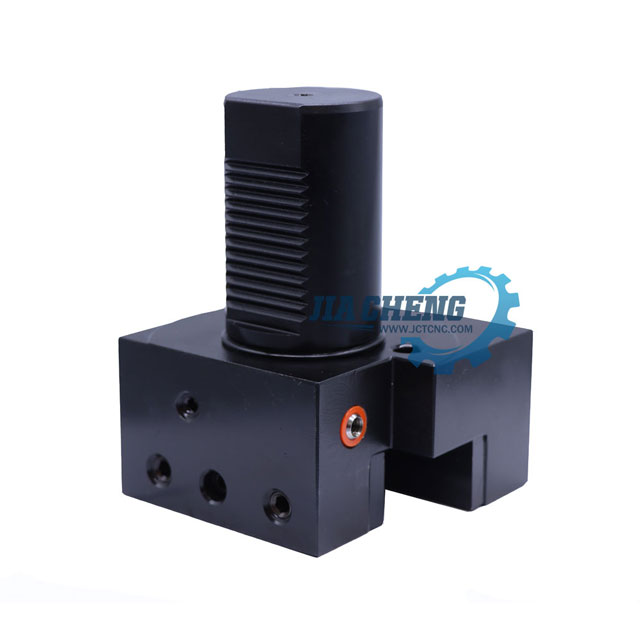

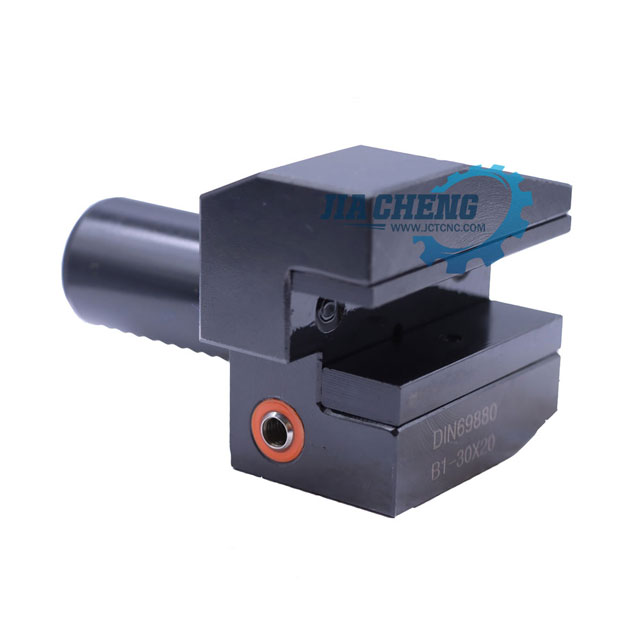

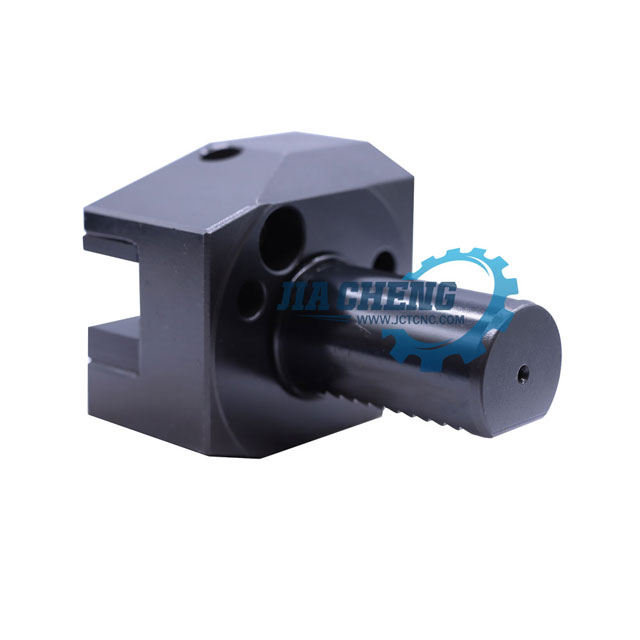

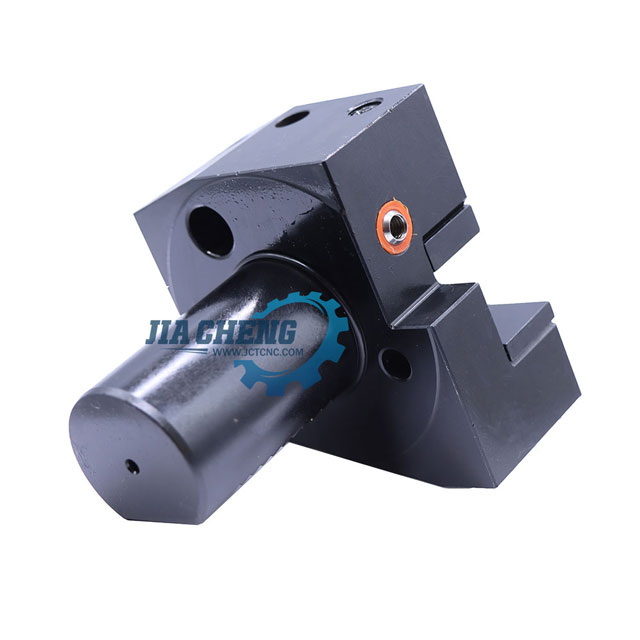

DIN69880 NC B1 Tool Holder

It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure、high accuracy、convenient and alternative etc. It can satisfy the needs of turning、drilling、boring and milling etc. With various tool holders and allocate different types tool and accessory.
Availability:
Quantity:
Inquire Add to Basket

  • DIN69880 B1

尺寸图

Model d1 b1 b2 b3 h1 h2 h3 h4 h5 h6
 h7
 l1 l2
B1-16X12X24 16 42 23 5 12 17 15 15 20 22 19 13 24
B1-20X16X30 20 55 30 7 16 22 19 19 25 30 23 16 30
B1-30X20X40 30 70 35 10 20 29 26 22 28 38 30 22 40
B1-40X25X44 40 85 42.5 12.5 25 34 35 30 32.5 48 -- 22 44
B1-50X32X55 50 100 50 16 32 41 42 35 35 60 -- 30 55
B1-50X32X55 60 125 62.5 16 32 41 46 42.5 42.5 62.5 -- 30 60
