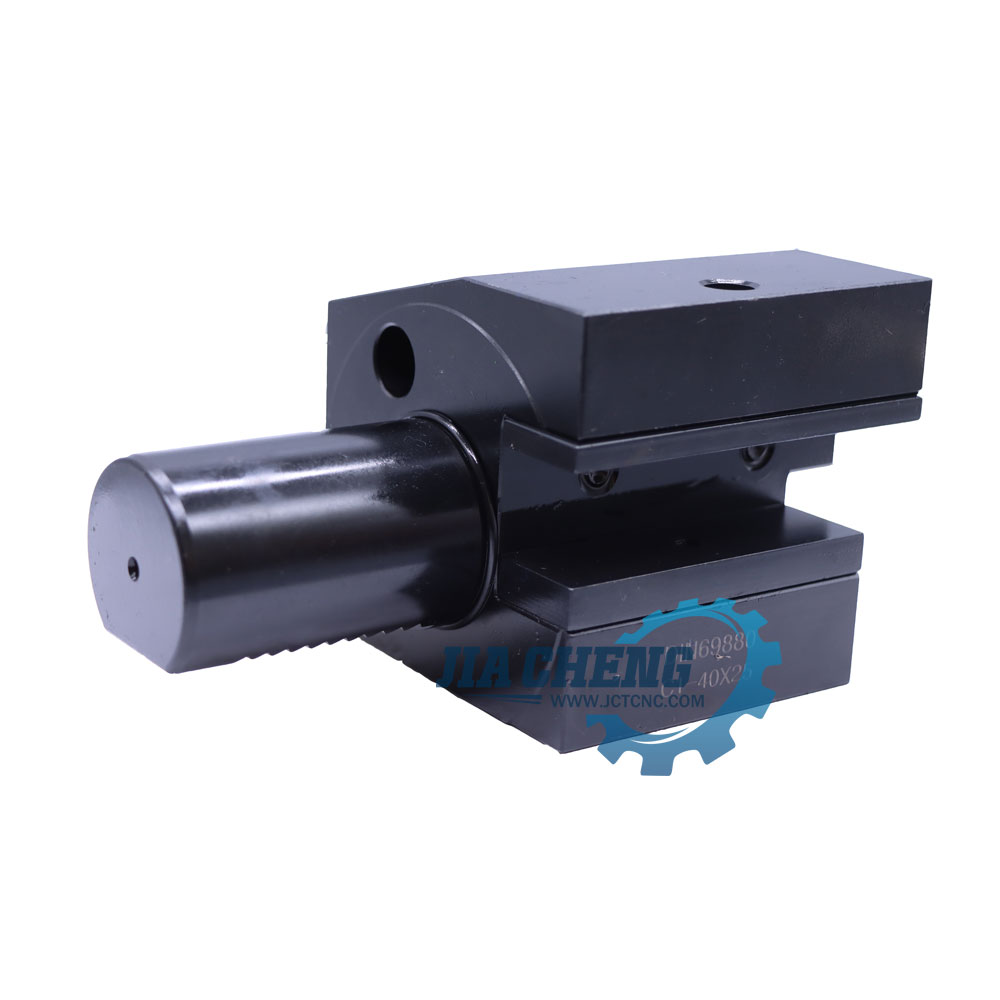

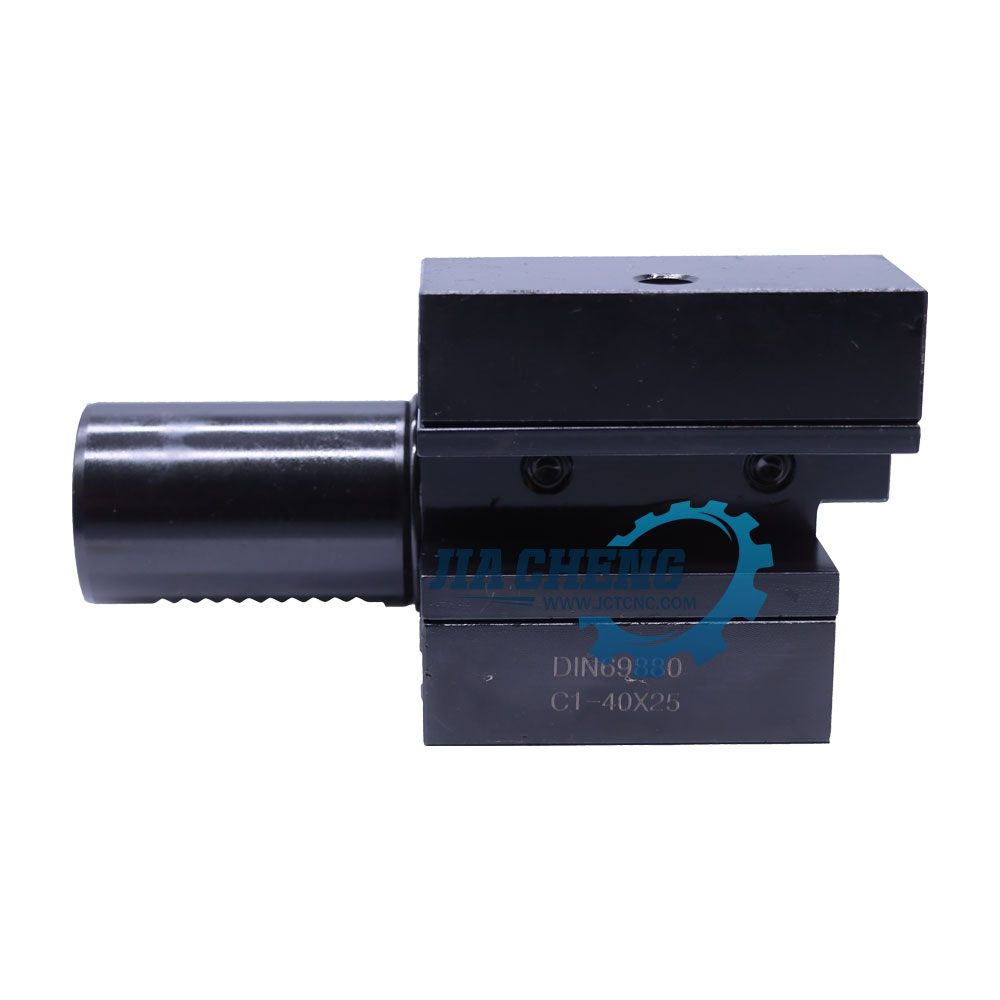

DIN69880 NC C1 Tool Holder

It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure、high accuracy、convenient and alternative etc. It can satisfy the needs of turning、drilling、boring and milling etc. With various tool holders and allocate different types tool and accessory.

Availability:

Quantity:



Inquire Add to Basket

Model:
DIN69880 C1

Product Description

DIN69880 tool holder C1

Model	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	l2	l3
C1-20X16	20	65	40	26	16	22	19	19	25	30	23	50	--	30
C1-30X20	30	70	35	17	20	29	26	22	28	38	30	70	10	30
C1-40X25	40	85	42.5	21	25	34	35	30	32.5	48	--	85	12.5	30
C1-50X32	50	100	50	26	32	41	42	35	35	60	--	100	16	40
C1-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	--	125	16	40
