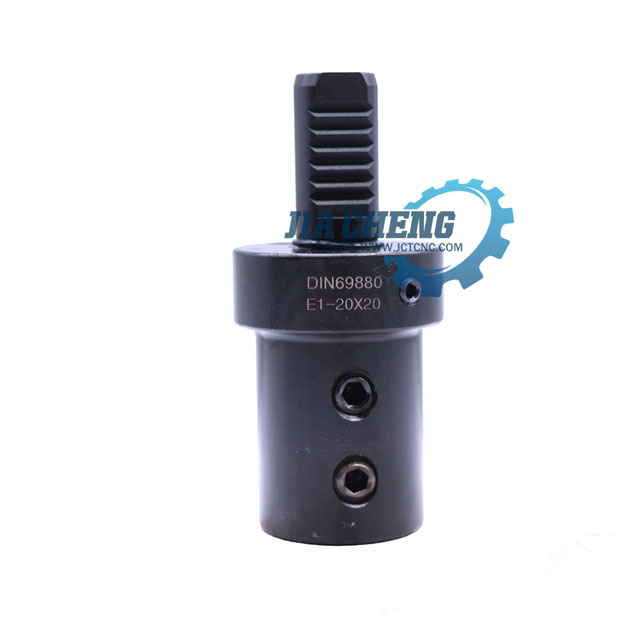

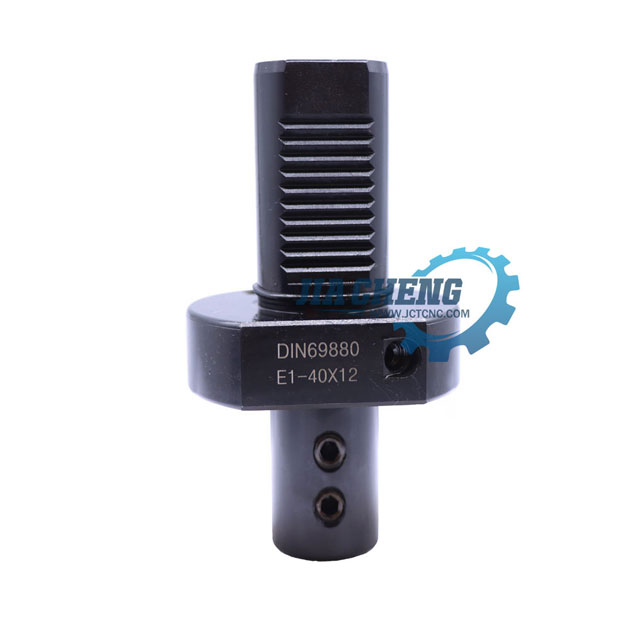

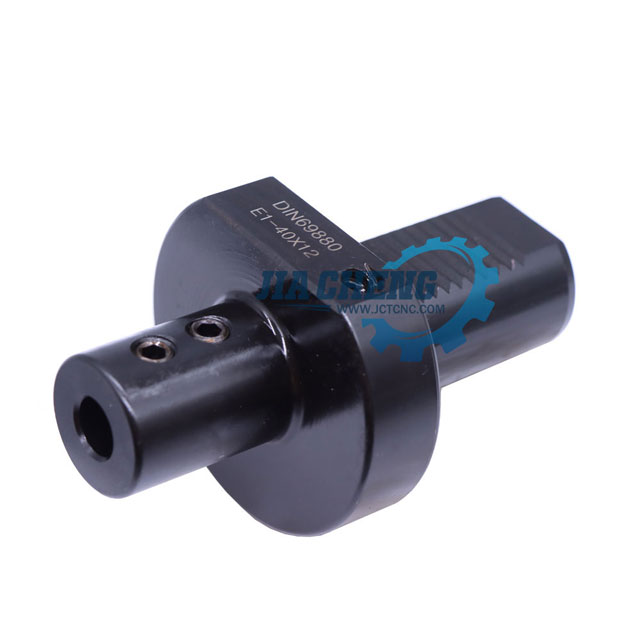

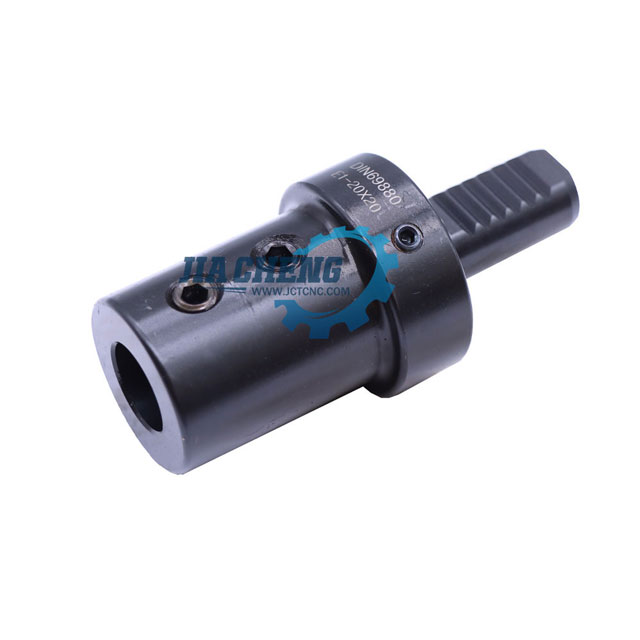

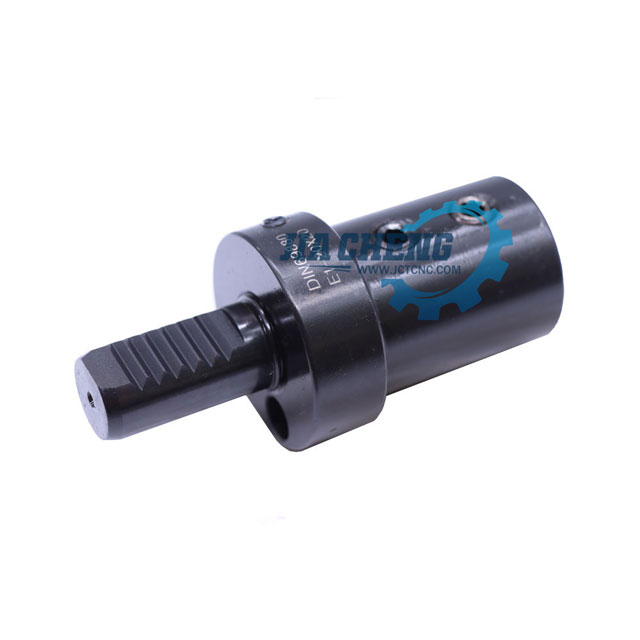

DIN69880 NC E1 Tool Holder

It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure、high accuracy、convenient and alternative etc. It can satisfy the needs of turning、drilling、boring and milling etc. With various tool holders and allocate different types tool and accessory.

Availability:

Quantity:



Inquire Add to Basket

Model:
DIN69880 E1

Product Description

尺寸图

Model	d1	d2	d3	d4	d5	h1	h2	l1	l2	l3	l4	l5
E1-20X16	20	16	36	M10x1	50	--	23	67	54	18	15	35
E1-20X20	20	20	40	M10x1	50	--	23	67	54	18	15	35
E1-20X25	20	25	45	M12x1	50	--	23	71	59	18	17	40
E1-30X10	30	10	30	M6	68	28	30	60	48	22	12	28
E1-30X12	30	12	32	M8x1	68	28	30	60	48	22	12	28
E1-30X16	30	16	36	M10x1	68	28	30	67	54	22	15	35
E1-30X20	30	20	40	M10x1	68	28	30	67	54	22	15	35
E1-30X25	30	25	45	M12x1	68	28	30	71	59	22	17	40
E1-30X32	30	32	52	M12x1	68	28	30	75	63	22	20	44
E1-40X12	40	12	32	M8x1	83	32.5	--	60	48	22	12	28
E1-40X14	40	14	34	M10x1	83	32.5	--	67	54	22	15	30
E1-40X16	40	16	36	M10x1	83	32.5	--	67	54	22	15	35
E1-40X20	40	20	40	M10x1	83	32.5	--	67	54	22	15	35
E1-40X25	40	25	45	M12x1	83	32.5	--	75	59	22	17	40
E1-40X32	40	32	52	M12x1	83	32.5	--	75	63	22	20	44
E1-40X40	40	40	65	M16x1	83	32.5	--	90	73	22	22	50
E1-50X20	50	20	40	M10x1	98	35	--	67	54	30	15	35
E1-50X25	50	25	45	M12x1	98	35	--	80	59	30	17	40
E1-50X32	50	32	52	M12x1	98	35	--	80	63	30	20	44
E1-50X40	50	40	65	M16x1	98	35	--	90	73	30	22	50
E1-50X50	50	50	75	M16x1	98	35	--	100	83	30	24	60
E1-60X20	60	20	40	M10x1	123	42.5	--	80	54	30	15	35
E1-60X25	60	25	45	M12x1	123	42.5	--	80	59	30	17	40
E1-60X32	60	32	52	M12x1	123	42.5	--	80	63	30	20	44
E1-60X40	60	40	65	M16x1	123	42.5	--	90	73	30	22	50
E1-60X50	60	50	75	M16x1	123	42.5	--	100	83	30	24	60
