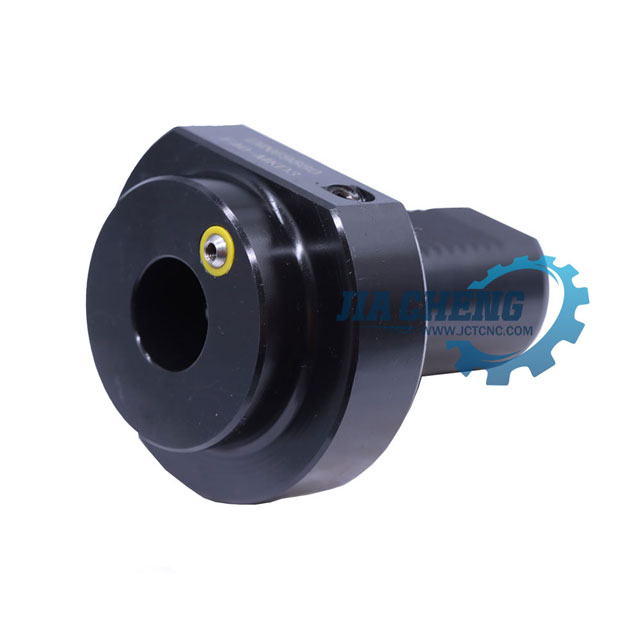

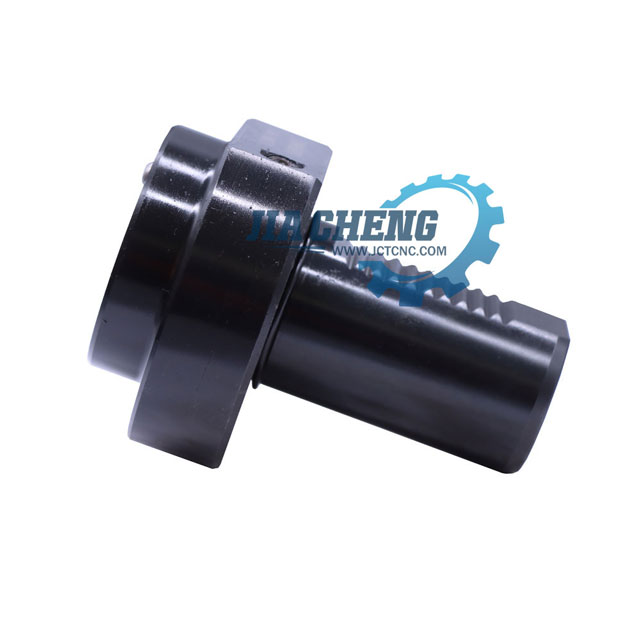

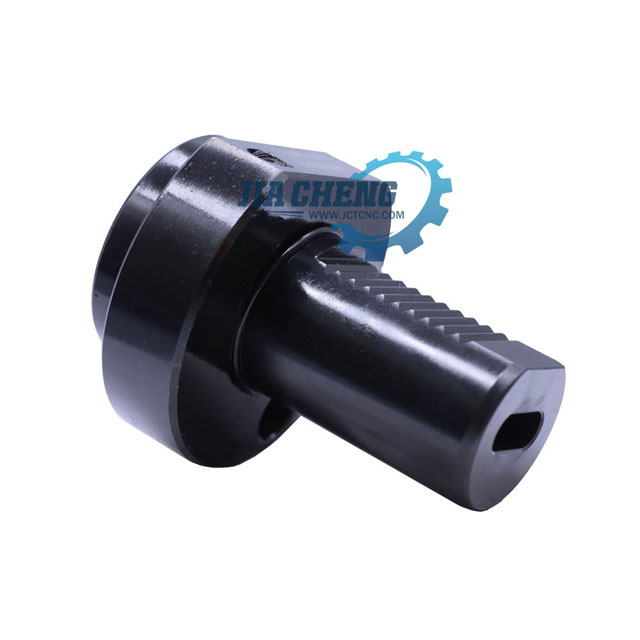

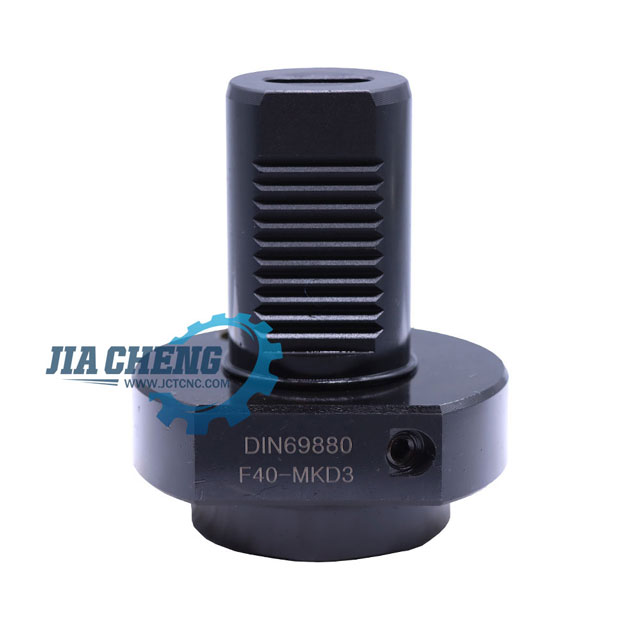

DIN69880 NC F Tool Holder

It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure、high accuracy、convenient and alternative etc. It can satisfy the needs of turning、drilling、boring and milling etc. With various tool holders and allocate different types tool and accessory.

Availability:

Quantity:



Inquire Add to Basket

Model:
DIN69880 F

Product Description

尺寸图

Model	d1	MT	d2	d3	d4	d5	h1	h2	l1	l2	l3
F-20XMS1	20	1	50	12.065	--	--	--	23	23	--	40
F-25XMS1	25	1	58	12.065	--	--	25	25	23	--	48
F-25XMS2	25	2	58	17.780	--	5	25	25	27	--	48
F-30XMS1	30	1	68	12.065	--	--	28	30	27	--	55
F-30XMS2	30	2	68	17.780	--	5	28	30	27	--	55
F-40XMS2	40	2	83	17.780	55	5	32.5	--	36	22	63
F-40XMS3	40	3	83	23.825	58	6	32.5	--	36	22	63
F-40XMS4	40	4	83	31.267	68	7	32.5	--	80	22	63
F-50XMS2	50	2	98	17.780	55	5	35	--	36	30	78
F-50XMS2	50	3	98	23.825	58	3	35	--	36	30	70
F-50XMS4	50	4	98	31.267	68	7	35	--	50	30	78
F-60XMS3	60	3	123	23.825	58	6	42.5	--	36	30	94
F-60XMS4	60	4	123	31.267	68	7	42.5	--	50	30	94
F-60XMS5	60	5	123	44.399	98	7	42.5	--	63	30	94
