Digital Command Drawbar Force Gauge System Spindle Force Dynamometer

The Drawbar Dynamometer provides fast and accurate spindle drawbar retention force in seconds. The procedure can be done without disassembling the drawbar.
Spindle Force Dynamometer
※ Product Features: Hydraulic mechanical structure, high stability
※ Specifications Instructions:
1. Verify pull force gauge bolt specifications on with four claw specifications correspond.
2. Rally and the front spindle taper portion wipe clean,
Rally to clamp.
Availability:
Quantity:
Inquire Add to Basket

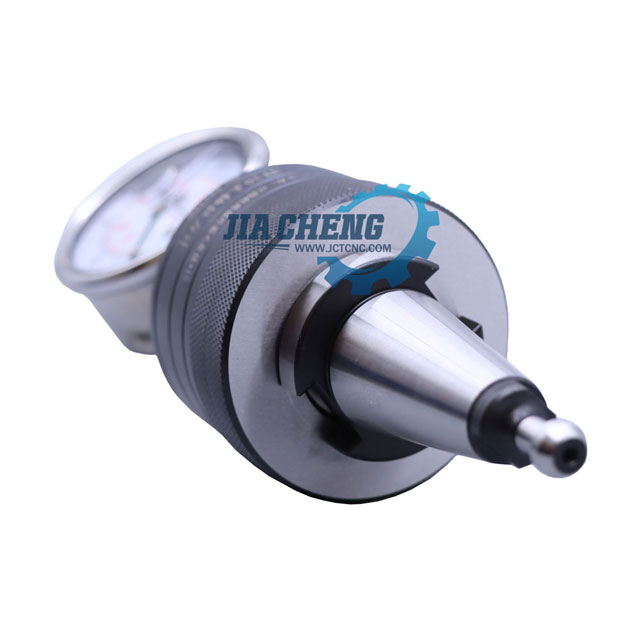

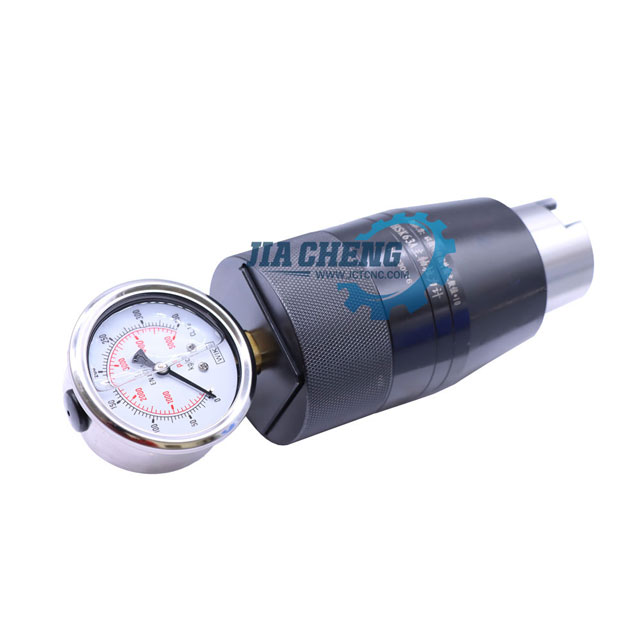

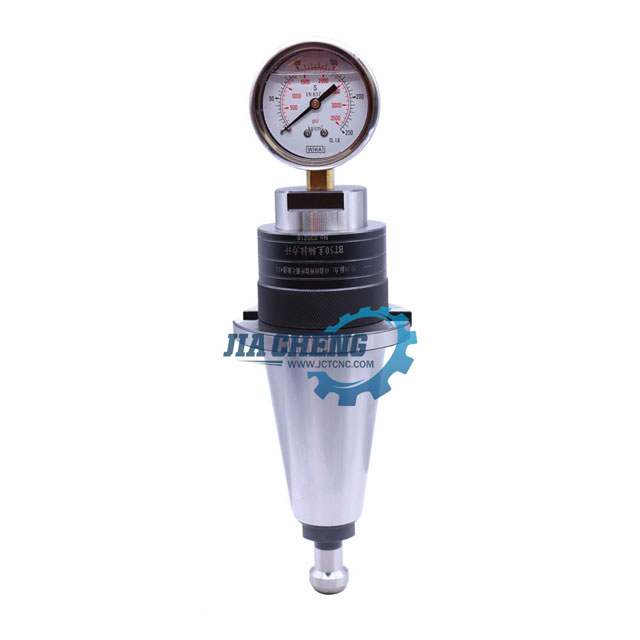

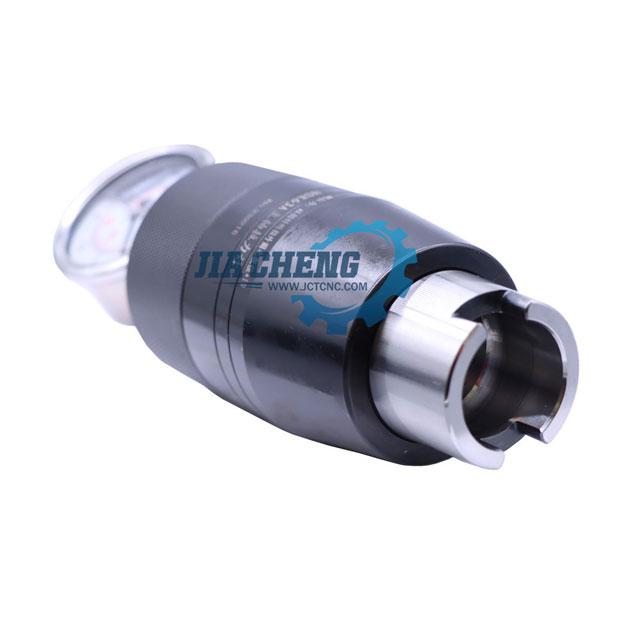

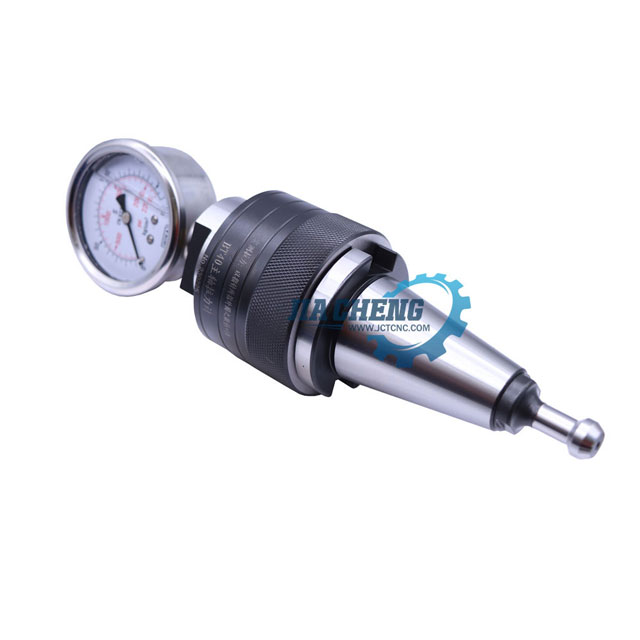

Spindle Force DynamometerSpindle Force Dynamometer 1Spindle Force Dynamometer 2

Spindle Interface Force /KN Dynamometer Force Range /KN
SK30/BT30 4.5 1-18
D-BT30 4.5 1-18
SK40/BT40 8.5 2-18
D-BT40 8.5 2-18
SK50/BT50 18 5-45
D-BT50 18 5-45
HSK32 5 0-18
HSK40 6.8 0-45
HSK50 11 0-45

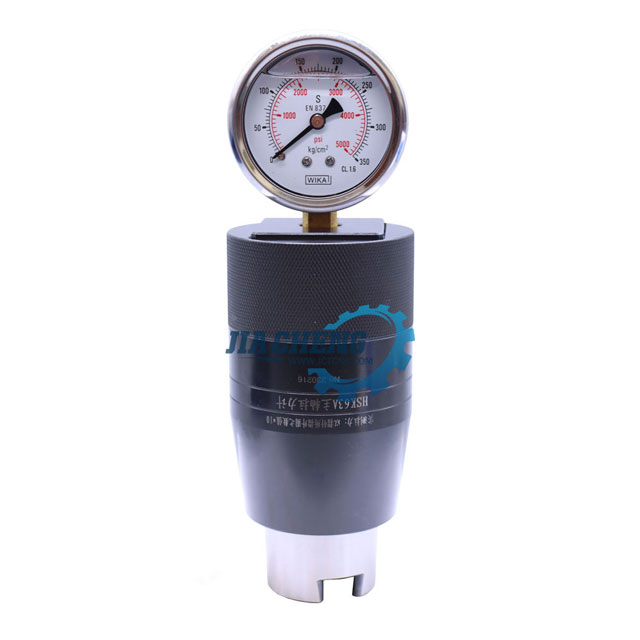

HSK63
 18 0-45
HSK80 28 0-90
HSK100 45 0-90
