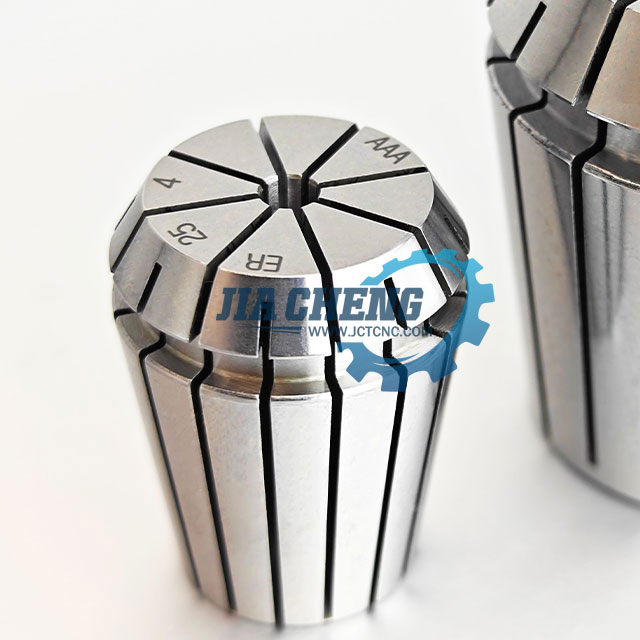

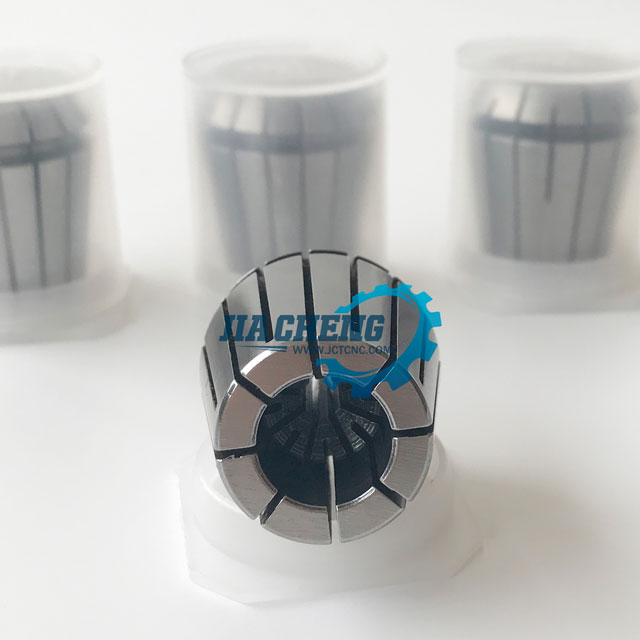

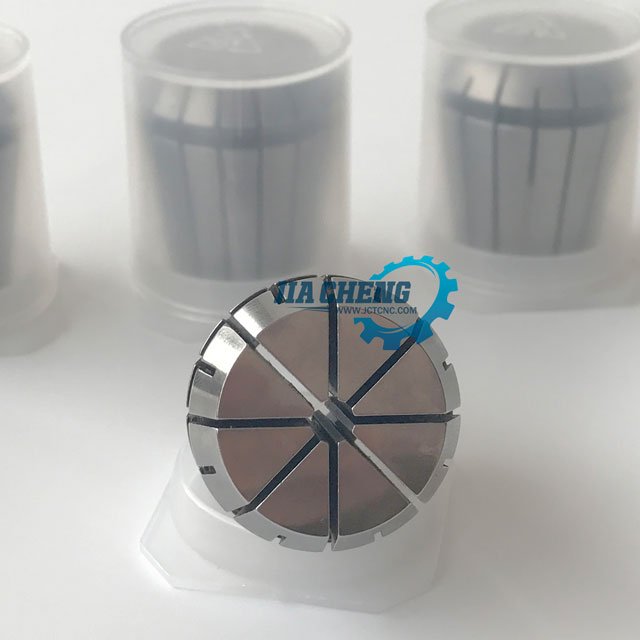

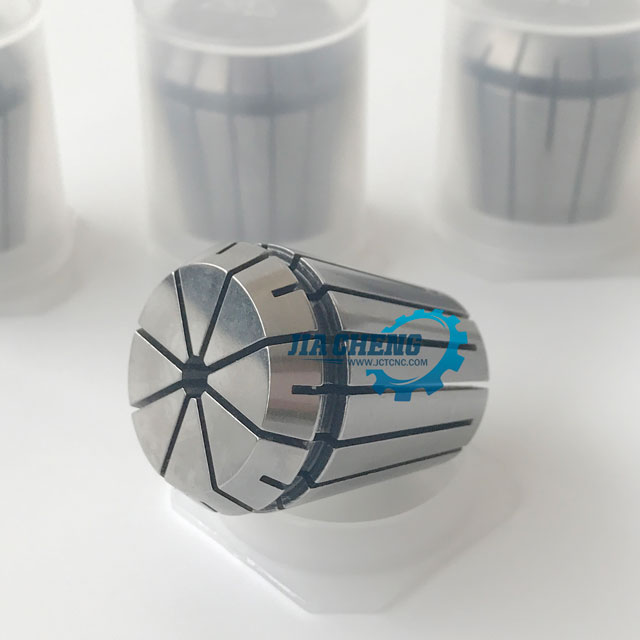

ER Clamping Spring Sealed Collet for BT ER Collet Chuck

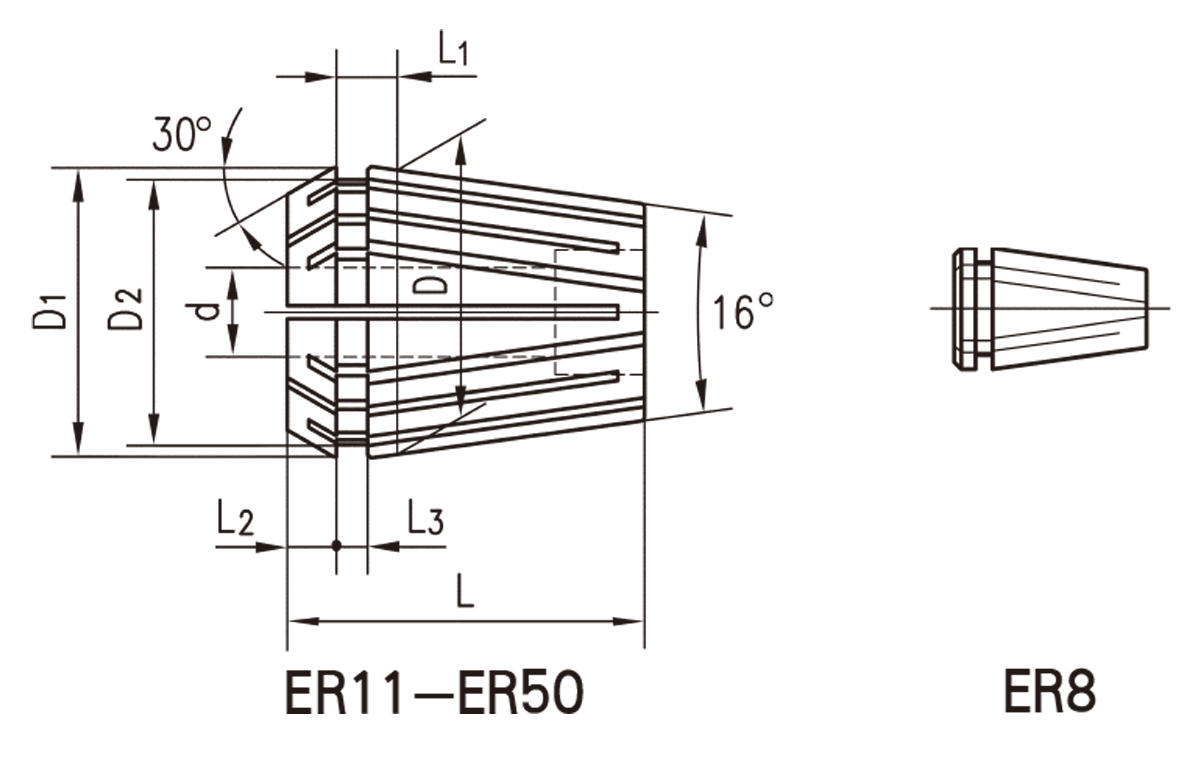

| Model | d H7 | D | D1 | D2 | L | L1 | L2 | L3 | Collapsible Capacity |
| ER8 | ≧1.0-5.0 | 8 | 8.45 | 6.5 | 13.5 | 2.98 | 1.5 | 1.2 | 0.5 |
| ER11 | ≧1.0-7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ER16 | ≧1.0-2.5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| >2.5-10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 | |
| ER20 | ≧1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| >2.5-10.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 | |
| ER25 | ≧1.0-2.5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
| ≧2.50-16.0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 | |
| ER32 | ≧2.0-2.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| >2.5-20.0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 | |
| ER40 | ≧3.0-26.0 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
| ER50 | ≧6.0-10.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
| >10.0-34.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 2.0 |

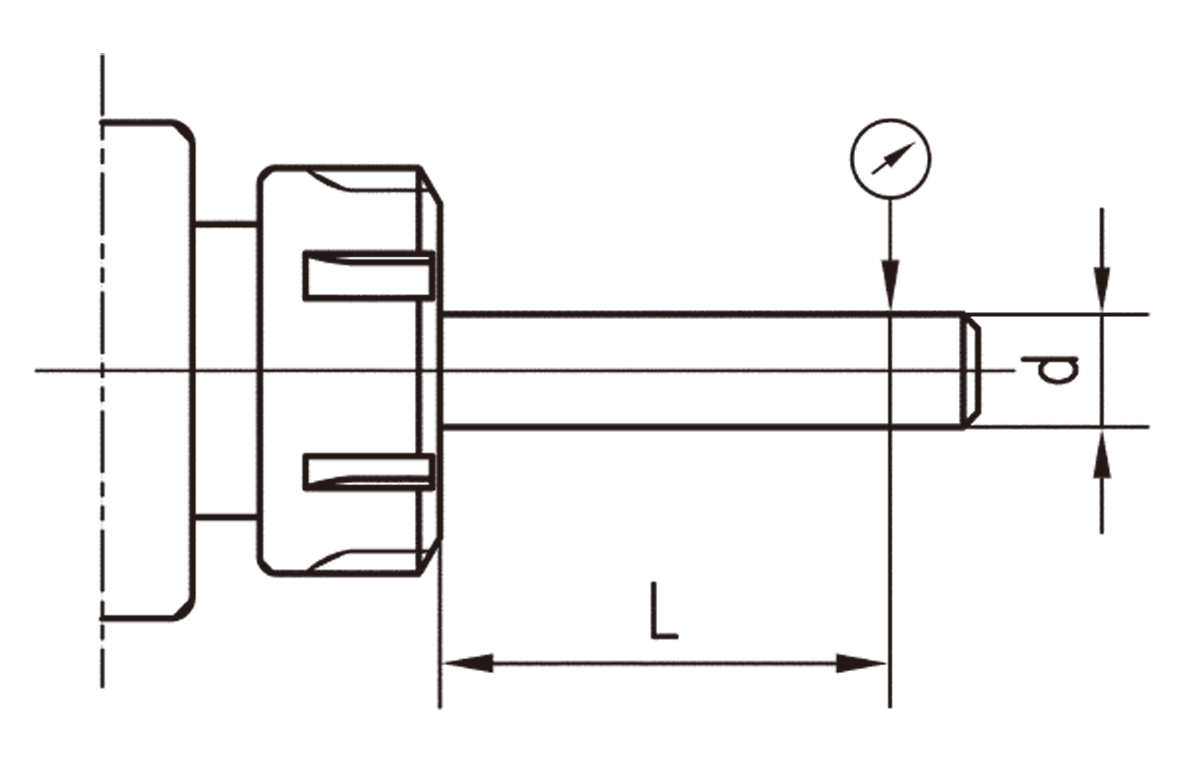

Inspection of Accuracy
| D | L | Run Out Tolerance | ||||
| A | B | C | I | II | ||
| 1.0-1.6 | 6 | 0.005 | 0.008 | 0.010 | 0.010 | 0.015 |
| >1.6-3.0 | 10 | |||||
| >3.0-6.0 | 16 | |||||
| >6.0-10.0 | 25 | |||||
| >10.0-18.0 | 40 | 0.015 | 0.020 | |||
| >18.0-26.0 | 50 | |||||
| >26.0-30.0 | 60 | |||||
| >30.0-34.0 | 80 | 0.020 | 0.030 | |||
