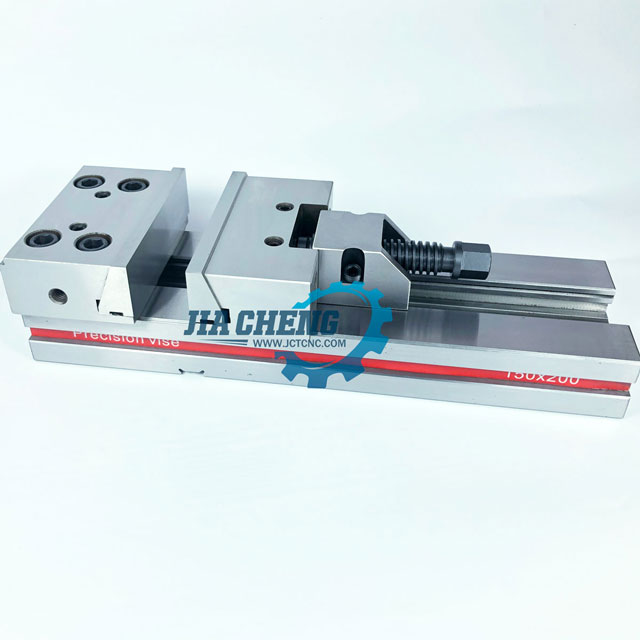

GT200 Precision Modular Machine Vise Machinery Tools Accessories
Features/Benefits:
• High accuracy
• Unlimited clamping range
• High quality alloy steel
• High clamping pressure
• No jaw lift
• All vises are matched
Order No. | B | H | Smax | L | Clamping force |
GT100 | 100 | 30 | 100 | 270 | 3000 |
GT125 | 125 | 40 | 150 | 345 | 3000 |
GT150A | 150 | 50 | 200 | 420 | 5000 |
GT150B | 150 | 50 | 300 | 520 | 5000 |
GT175A | 175 | 60 | 200 | 455 | 6000 |
GT175B | 175 | 60 | 300 | 555 | 6000 |
GT175C | 175 | 60 | 400 | 655 | 6000 |
GT175D | 175 | 60 | 500 | 755 | 6000 |
GT175E | 175 | 60 | 600 | 855 | 6000 |
GT200A | 200 | 65 | 200 | 495 | 10000 |
GT200B | 200 | 65 | 300 | 595 | 10000 |
GT200C | 200 | 65 | 400 | 695 | 10000 |
GT200D | 200 | 65 | 500 | 795 | 10000 |
GT200E | 200 | 65 | 600 | 895 | 10000 |
GT300A | 300 | 80 | 200 | 535 | 12000 |
GT300B | 300 | 80 | 300 | 635 | 12000 |
GT300C | 300 | 80 | 400 | 735 | 12000 |
GT300D | 300 | 80 | 500 | 835 | 12000 |
GT300E | 300 | 80 | 600 | 935 | 12000 |
GT300F | 300 | 80 | 700 | 1035 | 12000 |
GT300G | 300 | 80 | 800 | 1135 | 12000 |
GT Precision Modular Vise is mainly used in CNC machining centers, Precision Machines to clamp machined workpieces.
We use high quality and high hardness alloy steel as raw material 20CrMnTi. Carburized to surface hardness can be HRC58～62
With high accuracy, squareness and parallelism for vise is 0.003-0.005mm
Jaw width:100mm,125mm,150mm,175mm,200mm, 300mm
Modular vise composed of vise body, fix jaw, active jaw, clamping rack and lead screw.
Vise jaw plates: V angle grooved jaw plate
Precision modular vise jaw type: flat jaws, v groove jaws, thread hole jaws.
It have interchangeable base,fixed/movable jawsit is quickly to clamp and easy to operate
Development and design of quick-change jaws. Clamping accuracy is higher and more stable.
Interchangeable jaws
