HSK High Speed CNC Spindle Tool Holder

● A collet and replacement of cutting tools, screw nut and body must be clean, and add grease, Otherwise it will cause damage to
the thread
● The device must be placed when the collet nut, and then into the tool, then the lock body
● The placement tool collet hole, clamping collet must exceed effective length, to avoid improper locking dama

Availability:

Quantity:



Inquire Add to Basket

Model:
HSK-ER

Product Description

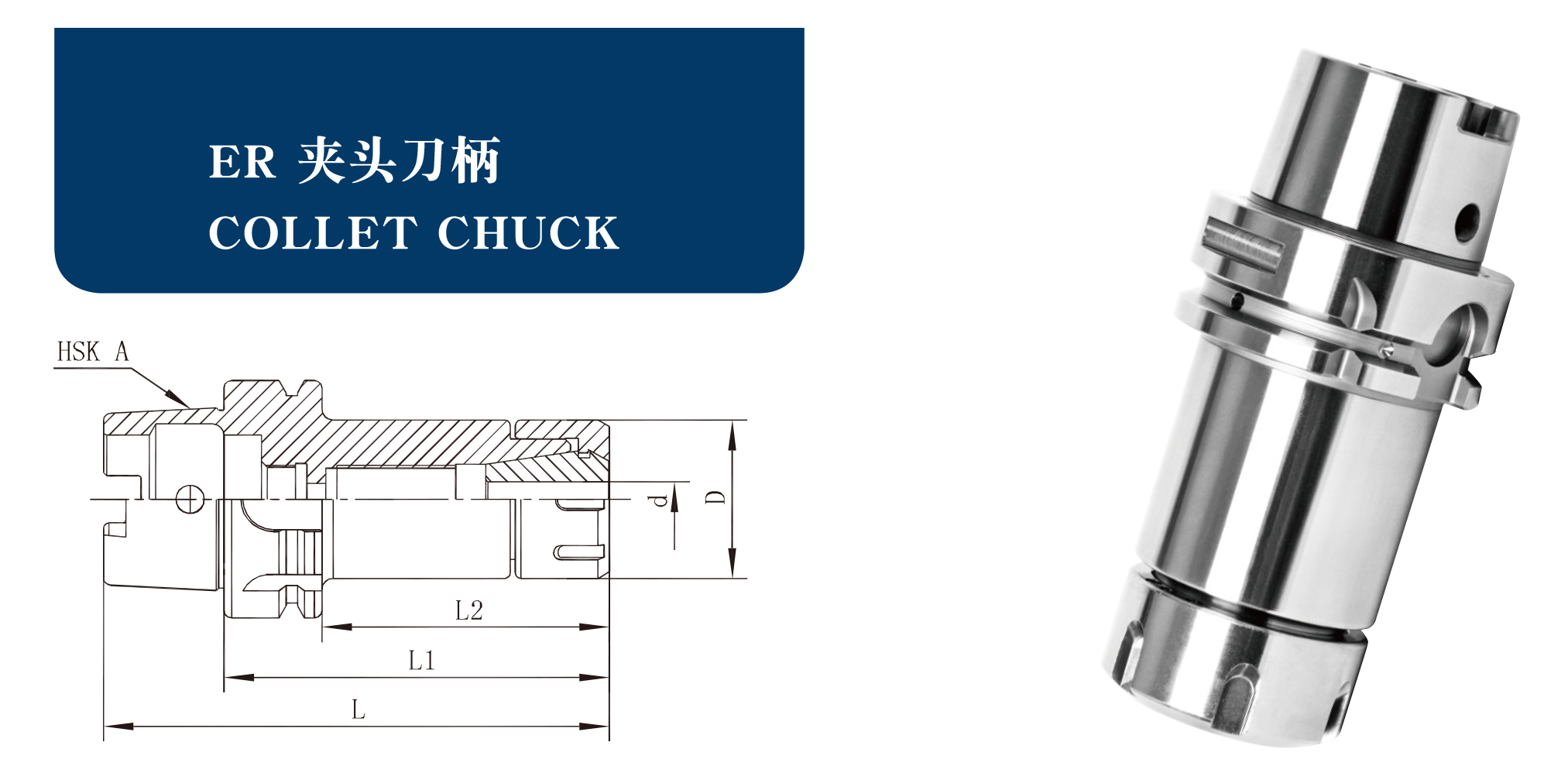

HSK-tool-holder6

Model		L	L1	L2	D	d
HSK63A	ER16-75	107	75	49	28	1-10
	ER16-100	132	100	74	28	1-10
	ER16-130	162	130	104	28	1-10
	ER16-160	192	160	134	28	1-10
	ER20-75	107	75	49	34	1-13
	ER20-100	132	100	74	34	1-13
	ER20-130	162	130	104	34	1-13
	ER20-160	192	160	134	34	1-13
	ER25-75	107	75	49	42	3-16
	ER25-100	132	100	74	42	3-16
	ER25-130	162	130	104	42	3-16
	ER25-160	192	160	134	42	3-16
	ER32-75	107	75	49	50	3-20
	ER32-100	132	100	74	50	3-20
	ER32-130	162	130	104	50	3-20
	ER32-160	192	160	134	50	3-20
	ER40-120	152	120	94	63	3-26
	ER40-160	192	160	134	63	3-26
HSK 100A	ER16-100	150	100	71	28	1-10
	ER16-160	210	160	131	28	1-10
	ER20-100	150	100	71	34	1-13
	ER20-160	210	160	131	34	1-13
	ER25-100	150	100	71	42	3-16
	ER25-160	210	160	131	42	3-16
	ER32-100	150	100	71	50	3-20
	ER32-160	210	160	131	50	3-20
	ER40-100	150	100	71	63	3-26
	ER40-160	210	160	131	63	3-26
