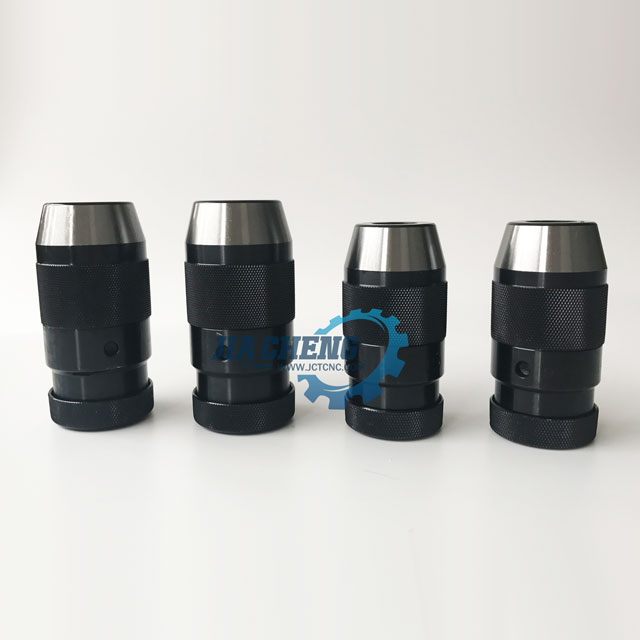

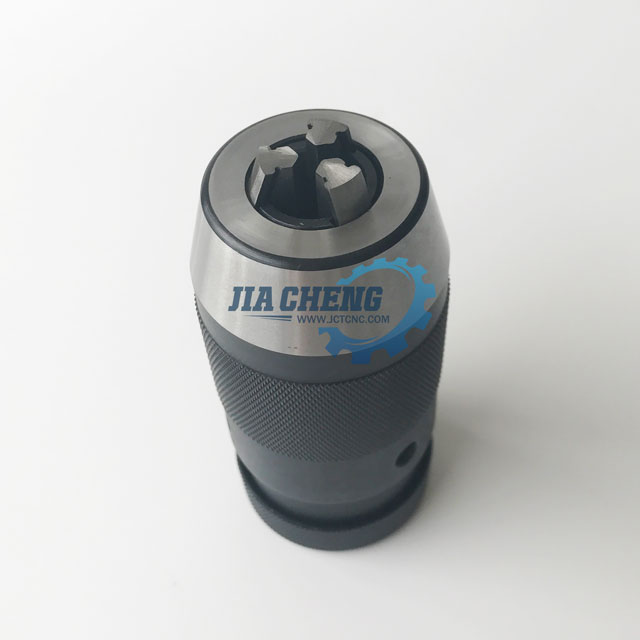

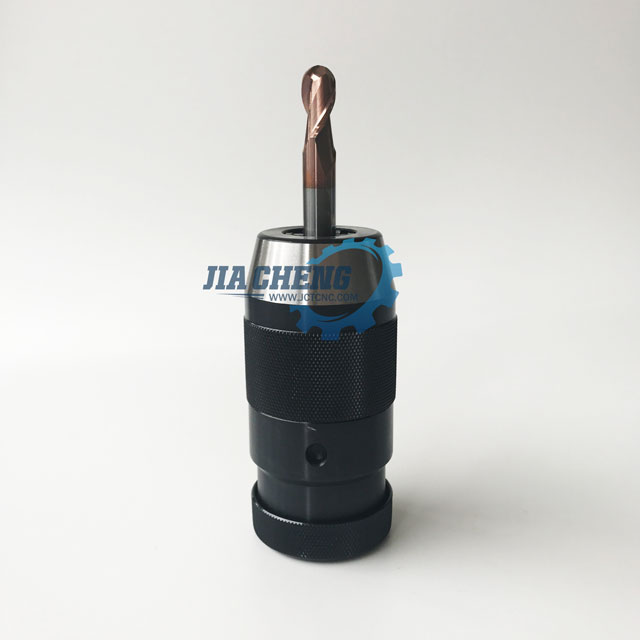

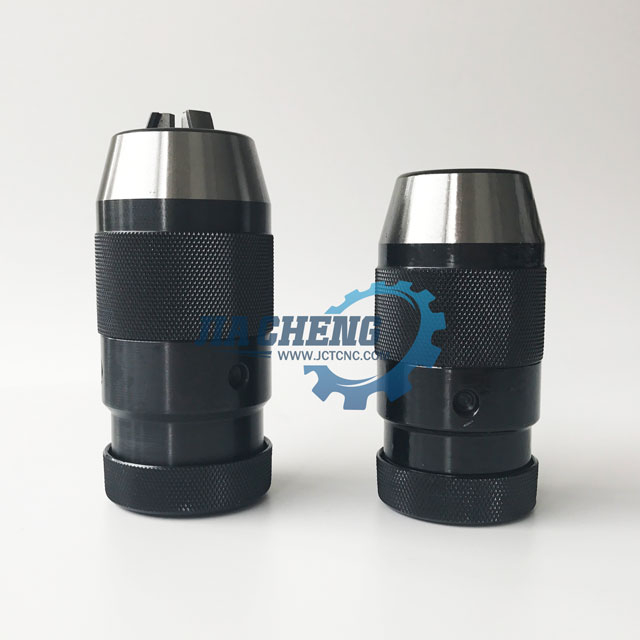

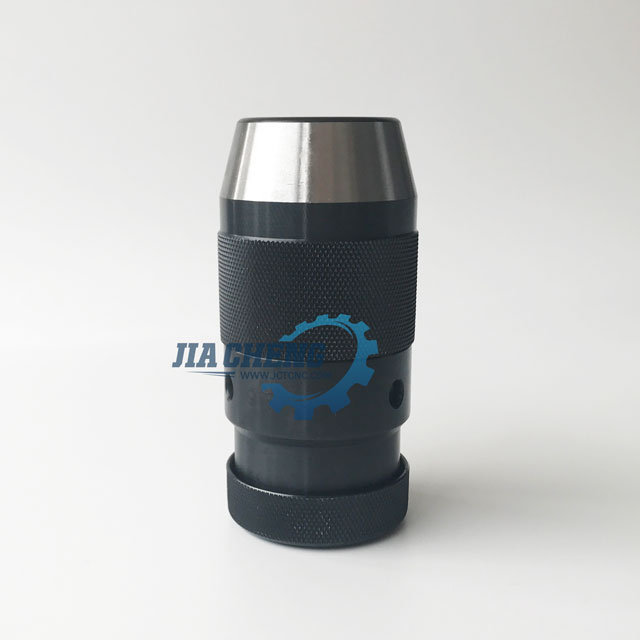

Heavy Duty Keyless Drill Chuck with Taper Mounted

This product is in conformity with the standard of JB4371.1~4371.3-99 of the Mechanical Engineering Ministry of China. High precision super drill chucks, Good rigidity & High durability.Suitable for Heavy duty & Extra heavy duty.For Machining center, Digital machine-tool, Boring lathe and Milling machine.

1. Grade P&D is used in lathe、milling machine、boring machine、drilling bench etc.
2. Grade M is used in high precision machine-tool, such as machining center and digital control machine.

Availability:

Quantity:



Inquire Add to Basket

Model:
BT-APU

Product Description

Heavy Duty Keyless Drill Chuck with Taper Mounted

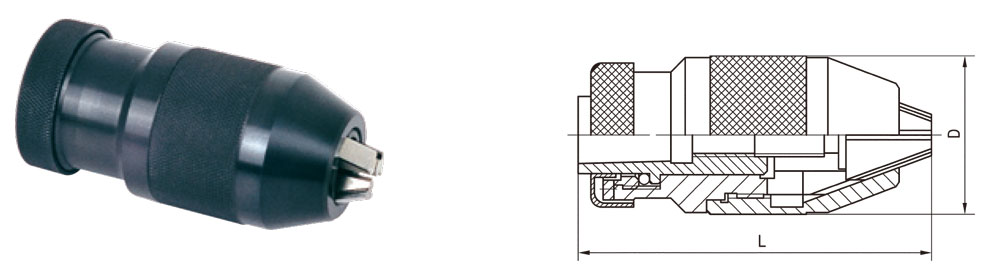

Order No.	Capacity	Mount	D mm	L mm	Runout mm
					P	D	M
J0106	0.5-6mm	B10	34	72	0.12	0.16	/
J0206	1/64"-1-4"	JT1
J0108	0.5-8mm	B12	42	82
J0208	1/64"-5/16"	JT2					0.06
J0110	1-10mm	B12	42	82
J0210	1/32"-3/8"	JT2	44	88
J0210A		JT33
J0113	1-13mm	B16	44	97
J0113A		B16	49	100
J0213	1/32"-1/2"	JT33
J0213A		JT6
J0116A	3-16mm	B16	54	110	0.14	0.20	0.07
J0116		B18
J0216	5-20mm	JT6
J0216A	3/16"-3/4"	JT3
J0120	5-20mm	B22	60	125	0.18	0.25	/
J0220	3/16"-3/4"	JT3
