In the world of precision manufacturing, machine tool accessories play a crucial role in improving the performance, versatility, and accuracy of machinery. These accessories, often seen as complementary tools, help optimize the functioning of CNC machines, lathe machines, milling machines, and drilling machines, among others. With the right set of accessories, manufacturers can achieve superior quality, increase operational efficiency, and reduce downtime.
5.
What Are Machine Tool Accessories?
Machine tool accessories are components or attachments that enhance the capabilities of the primary machine. They are designed to improve the machining process by increasing tool stability, cutting efficiency, and precision. Accessories can range from simple attachments like tool holders and clamps to more advanced components such as automatic tool changers, coolant systems, and measuring instruments.
Types of Machine Tool Accessories
1. Tool Holders Tool holders are essential for securely holding cutting tools, ensuring precision and stability during machining operations. Types of tool holders include:
Collet Chucks: Used to hold round shank tools, providing high precision and rigidity.
End Mill Holders: Specifically designed to hold end mills for milling operations.
Drill Chucks: Hold drills in place for boring and drilling operations.
2. Vices and Clamps Vices and clamps are used to secure workpieces during machining. They ensure that the material stays in position, preventing any shifting or movement that could lead to inaccuracies.

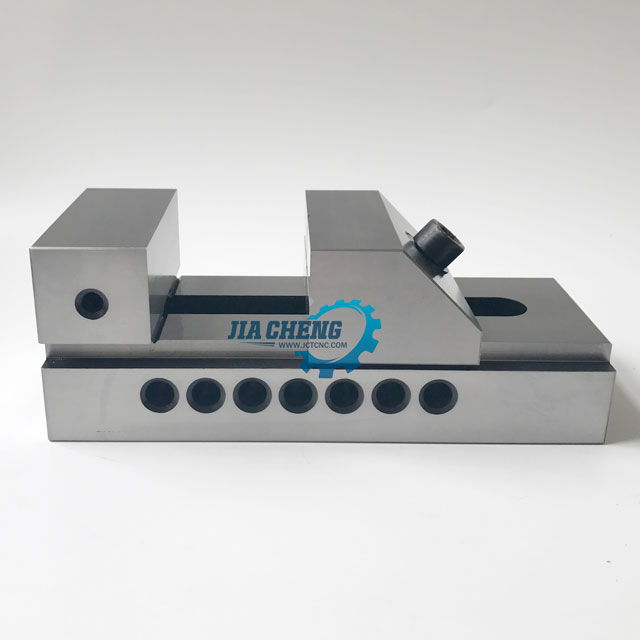

Precision Vices: Ideal for holding small and intricate workpieces.
Universal Clamps: Useful for clamping irregularly shaped parts.
3. Rotary Tables A rotary table is a versatile machine tool accessory that enables the workpiece to rotate, facilitating complex milling, drilling, and grinding operations. Rotary tables come in different configurations, including manual and motorized options, to provide various rotational speeds and precision.
4. Tool Changers Automatic tool changers (ATCs) are used to automate the process of changing tools in CNC machines. This greatly enhances productivity by reducing downtime during tool change operations. There are several types of ATCs, including:
Carousel Tool Changers
Linear Tool Changers
5. Coolant Systems A coolant system is crucial for preventing overheating and improving the lifespan of cutting tools. These systems help in reducing friction and removing debris from the machining area.
Flood Coolant: Provides a continuous stream of coolant to the cutting zone.
Mist Coolant: Delivers a fine mist to cool the tool and workpiece.
6. Measuring Instruments To ensure that products meet exact specifications, measuring instruments like digital calipers, micrometers, height gauges, and surface plates are essential. These tools provide accurate measurements for quality control and help reduce errors during the manufacturing process.
7. Faceplates and Chucks Faceplates and chucks are used for holding irregular or larger workpieces that cannot be mounted in standard vices. A self-centering chuck can hold round parts, while four-jaw chucks allow more flexibility in holding square or irregularly shaped materials.
8. Workholding Fixtures Custom-designed workholding fixtures are used to secure parts in place during multi-step machining operations. These fixtures are tailored to the specific requirements of a job and can significantly improve production efficiency.
Why Are Machine Tool Accessories Important?
The addition of high-quality accessories can make a significant difference in the performance of machine tools. Here’s why:
Increased Accuracy and Precision: Accessories such as tool holders, chucks, and measuring instruments ensure that machining operations are carried out with minimal deviations, resulting in higher-quality products.
Enhanced Efficiency: Accessories like automatic tool changers and coolant systems reduce setup times and increase the speed of production processes.
Improved Versatility: Machine tool accessories make it possible to perform a wider range of operations. For instance, a rotary table allows for multi-axis machining, and a vise helps secure irregularly shaped parts.
Better Tool Life: Proper use of accessories like coolant systems can prolong the life of tools, reducing the frequency of tool changes and maintenance.
Common Industries That Use Machine Tool Accessories
Machine tool accessories are used across various industries, including:
Automotive: For the mass production of engine parts, transmission components, and chassis.
Aerospace: For manufacturing highly complex and precise components like turbine blades and landing gear.
Medical Devices: For creating small, intricate parts used in medical equipment.
Defense: For producing critical parts that require extreme precision and reliability.
Consumer Electronics: For machining delicate components like smartphone frames and circuit boards
Conclusion
Machine tool accessories are indispensable in modern manufacturing, helping to improve performance, increase efficiency, and ensure high levels of precision. Whether you're working with a CNC milling machine, lathe, or grinder, the right set of accessories can make all the difference in achieving the desired results. By investing in high-quality accessories and regularly maintaining them, manufacturers can improve overall productivity, reduce costs, and deliver superior products to the market.
