Aa/A/E/B/C
JC

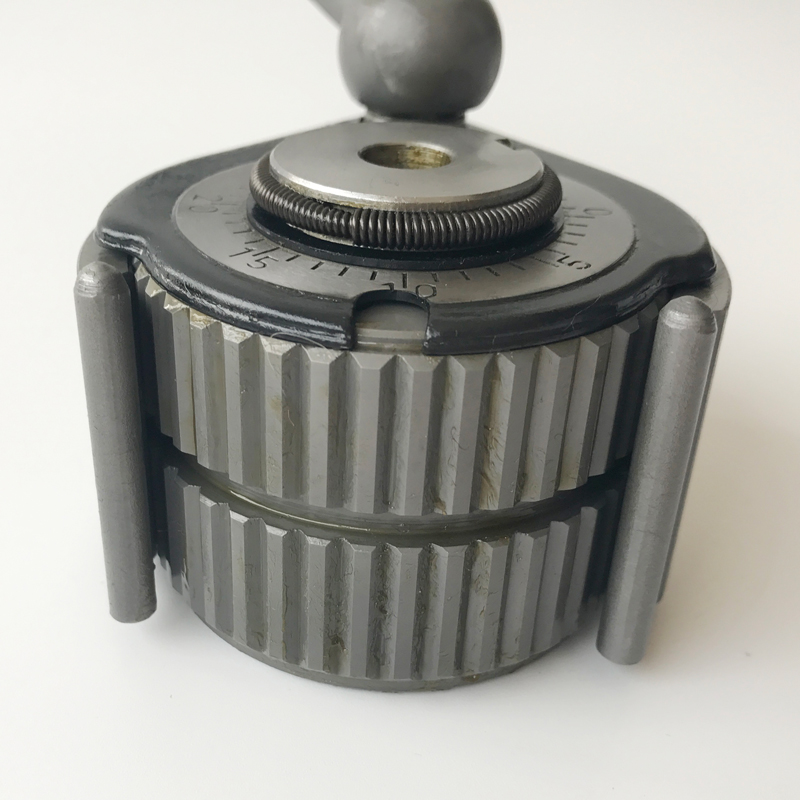

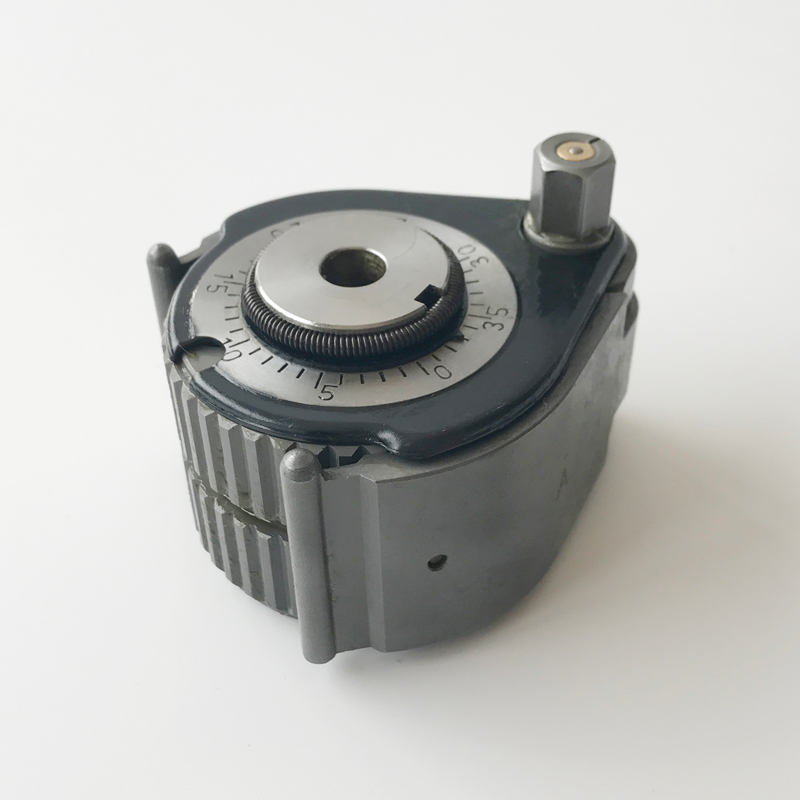

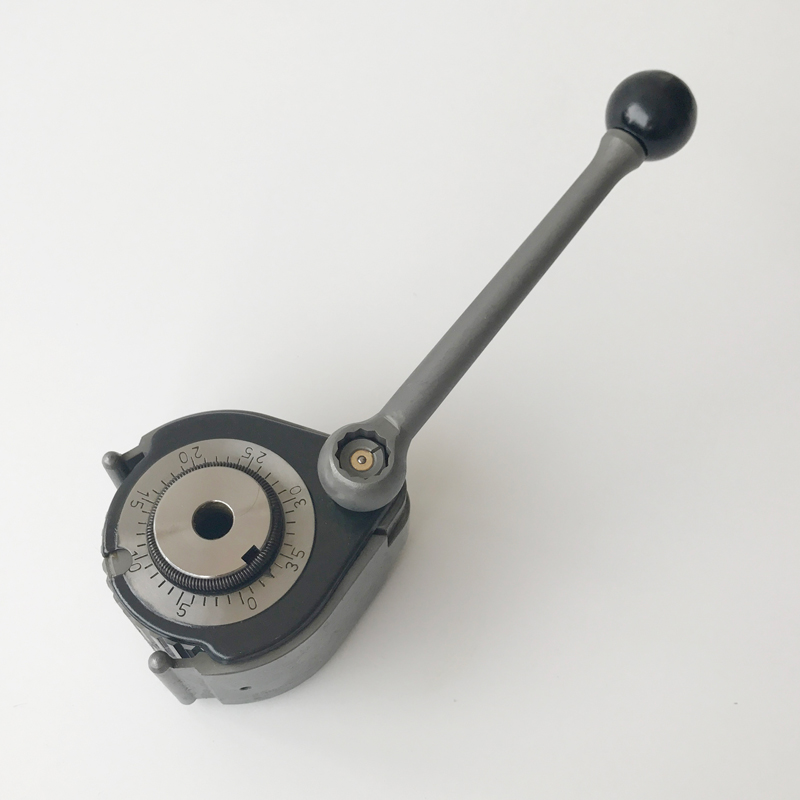

Multifix Style 40 Position Quick Change Tool Post
DESIGN:
1.Basic body and tool holder are made of high-quality steel
which is hardened and ground
2.The tool holder is clamped against the basic body by an eccentric cam system
The system allows a repeat accuracy of 0.01 mm with 40 possible angular positions of the tool holder.
Application:
Quick-change tool holders are characteried by their unlimited diversity in th use of lathe tools,drills,reamers and boring bars.

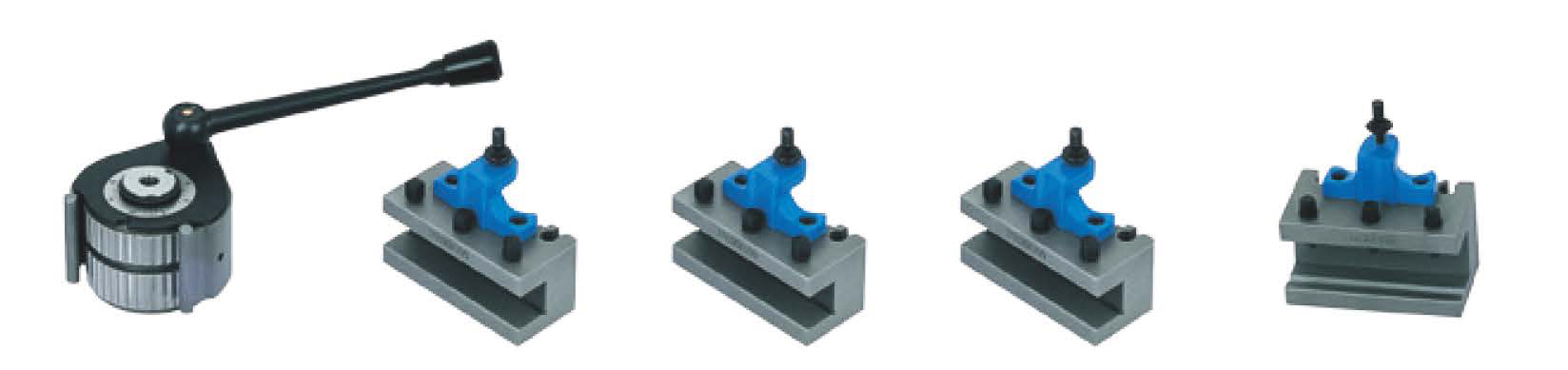

Includes 3 standard holders & one boring holder

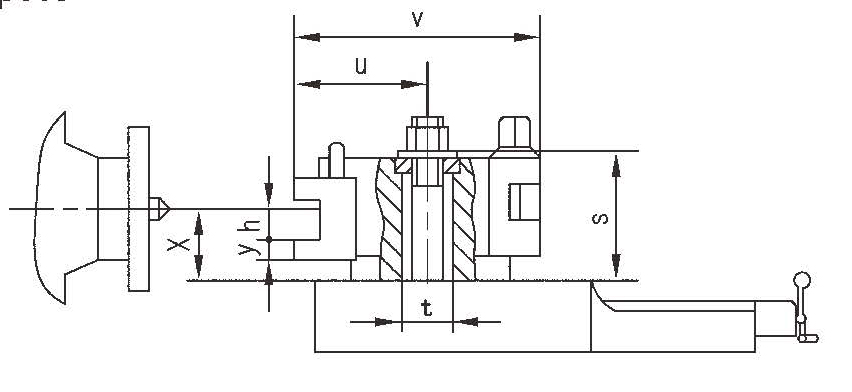

| Item | Lathe Swing | Xmin | Xmax | y | h | v | s | u | t |
| Aa | 120-220 | 18 | 26 | 6 | 12 | 62.5 | 37 | 33.75 | 13 |
| A | 150-300 | 25.5 | 36.5 | 9.5 | 16 | 104 | 55 | 52.4 | 20 |
| 29.5 | 40.5 | 20 | |||||||
| E | 200-400 | 29 | 40 | 9 | 20 | 132 | 68 | 65.3 | 20 |
| 34 | 43 | 25 | |||||||
| B | 300-500 | 38 | 58 | 13 | 25 | 152 | 77 | 75 | 32 |
| 46 | 57 | 14 | 32 | ||||||
| C | 400-700 | 47 | 92 | 15 | 32 | 191 | 107 | 92 | 40 |
| 55 | 91 | 15 | 40 | 202 | 102 | ||||
| 63 | 91 | 18 | 45 | 202 | 102 |
| Item | EACH SET INCLUDES | N.W/KG |
| Aa | 1PC Aa, 3PCS AaD12X50, 1PC AaH12X50 | 1.13 |
| A | 1PC A, 3PCS AD20X90, 1PC AH20X90 | 3.60 |
| E | 1PC E, 3PCS ED20X100, 1PC EH30X100 | 7.50 |
| B | 1PC B, 3PCS BD25X120, 1PC BH32X130 | 11.80 |
| C | 1PC C, 3PCS CD32X150, 1PC CH40X160 | 23.70 |
